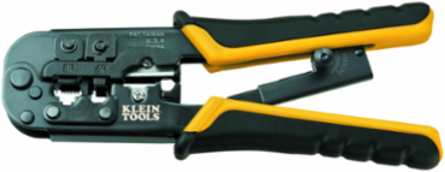

Klein Tools VDV226-011-SEN Ratcheting Modular Crimper/Stripper for RJ45, RJ11, RJ12, Cuts/Strips/Crimps 7.5 Inch
- MPN: VDV226-011-SEN
- UPC: 092644580147
- PPN: KLT-VDV226-011-SEN
- UNSPSC: 43222814
CAD
$58.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

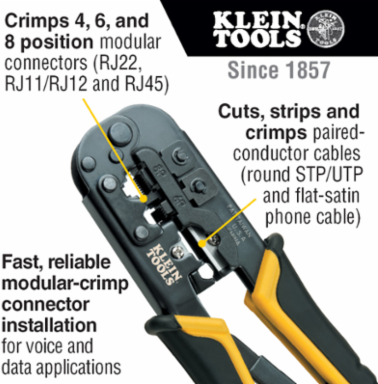

The all-in-one Ratcheting Modular Crimper/Stripper cuts, strips and crimps paired-conductor cables (round STP/UTP and flat-satin phone cables). Durably made from steel and finished in black oxide for high performance, it provides fast, reliable modular-crimp connector installation for voice- and data applications. Crimps 4, 6, and 8 position modular connectors (RJ22, RJ11/RJ12, and RJ45).
Features
- Fast, reliable modular-crimp connector installation for voice and data applications
- All-In-One Tool, cuts, strips and crimps paired-conductor cables (round STP/UTP and flat-satin phone cable)
- Crimps 4, 6, and 8 position modular connectors (RJ22, RJ11/RJ12, and RJ45 Cat5e/Cat6)
- Optimized for standard modular plugs and proper cable preparation and full insertion of conductors are required for best results
- Crimping dies are precision ground from high-carbon steel
- Designed for Western Electric (WE)/Stewart Stamping (SS)-type standard modular connectors (not compatible with pass-thru connectors or Cat7/Cat8 plugs)
- Ratchet safety-release and a blade-guard on cutting and stripping knives reduce risk of injury
- Full-cycle ratchet mechanism prevents the release of the connector prior to full compression
- Yellow and black grips enhance comfort, visibility, and allow quick identification
- Three crimping dies (8-position, 6-position and 4-position).
- Cable parameters: 28-22 AWG (.08 - .34 mm²) flat or round; solid or stranded telephone & data.
- Not for use with AMP® connectors.
- AMP® is a registered trademark of TYCO, Inc.
- Replacement blade set available (Cat. No. VDV999-064)
Documentation & Downloads
Specifications
Key Specifications
- Position/Pair/Conductors
- 4-Position, 1-Pair/2-Conductor, 4-Position, 2-Pair/4-Conductor 6-Position, 2-Pair/4-Conductor, 6-Position, 3-Pair/6-Conductor, 8-Position, 4-Pair/8-Conductor
- Type
- Crimper
- Application
- Round STP/UTP, Flat Satin Phone Cable 22 - 28 AWG (0.08 - 0.34 mm²)
- Cable Type
- CAT3, CAT5e, CAT6/6A
- Height
- 0.9000 in
- Depth
- 7.5000 in
MaterialSteel with Black Oxide
Handle ColorYellow/Black
Connector TypeRJ45, RJ11, RJ12 Standard
Overall Length7.5 Inch (19.1 cm)
Width4.0000 in
Weight0.1000 lbs
