Weidmuller 2593380000 RCMA-B22-D125-1.5
- MPN: 2593380000
- PPN: WDM-2593380000
CAD
$313.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

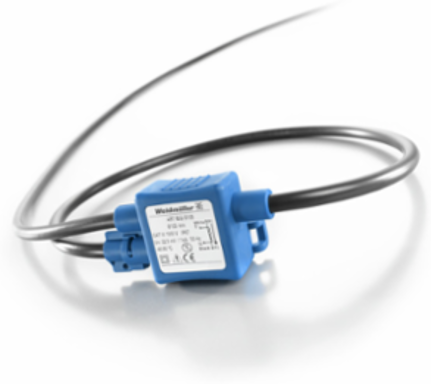

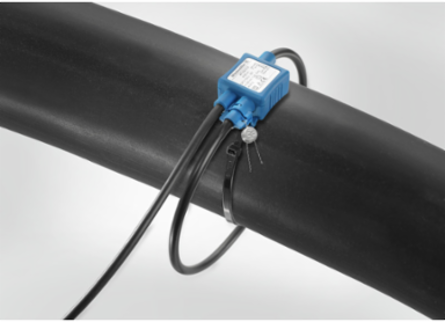

Rogowski coil, Diameter: 125 mm, Cable length: 1.5 m
Documentation & Downloads
Specifications
General Data
- Linearity
- no linearity error
StandardIEC 61010-1: 2010, IEC 61869-1: 2007, IEC 61869-2: 2012, IEC 61869-6: 2016, IEC 61869-10: 2017, UL 61010-1
Electrical Attributes
- Primary current
- 5,000 A
Tolerance class0,5
Approvals
- Approvals
- UL
- UL File Number Search
- E469563
ROHSConform
Dimensions And Weights
- Net weight
- 125 g

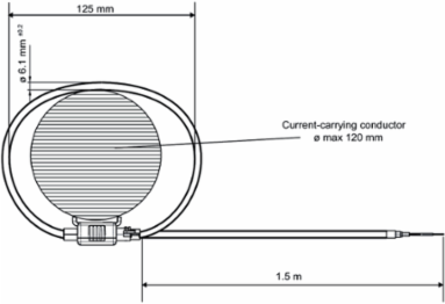

Diameter125 mm
Technical Properties
- Cable diameter
- 6.1 mm
- Coil resistance
- 81 Ω
Cable length1.5 m
Rated Data Ul
- Certificate No. (UL)
- E469563
Classifications
- ETIM 6.0
- EC002475
- eClass 9.0
- 27-21-01-23
- eClass 10.0
- 27-21-01-23
ETIM 7.0EC002475
eClass 9.127-21-01-23
Insulation Coordination
- Clearance & creepage distances
- >16 mm
- Insulation voltage
- 7.4 kVRMS(50 Hz, 1 min)
Impulse withstand voltage12.8 kV (1.2/50 ms)
StandardIEC 61010-1: 2010, IEC 61869-1: 2007, IEC 61869-2: 2012, IEC 61869-6: 2016, IEC 61869-10: 2017, UL 61010-1
Temperatures
- Humidity at operating temperature
- 5 - 90 %, no condensation
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...80 °C
Operating temperature, max.80 °C
Storage temperature, max.80 °C
Operating temperature-40 °C...80 °C
