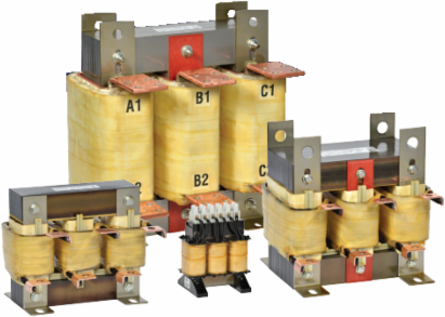

Hammond Power Solutions CRX06D1BE REAC 6.1A 7.78MH 60HZ CU TYPE1
- MPN: CRX06D1BE
- UPC: 803423121099
- PPN: HPS-CRX06D1BE
CAD
$523.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
REAC 6.1A 7.78MH 60HZ CU TYPE1
Features
- Engineered specifically for heavy-duty industrial power quality applications, this 3-phase AC line/load reactor easily handles systems up to 600V AC (with 690V de-rating available) at 60 Hz. The unit features a precise 6.1A current rating and 7.78 mH nominal inductance, providing a rock-solid electrical bridge to defend automated infrastructure against severe transient surges and grid instability.
- Featuring a high-tier 5.0% impedance rating, this Centurion R series reactor significantly rounds out non-linear waveforms and narrows peak current draw to clip total current harmonic distortion by roughly 30%. Implementing this unit prevents severe voltage "flat-topping" on your line side, ensuring that nearby PLC controllers, digital sensors, and neighboring automation systems run cleanly without diagnostic noise or error loops.
- When installed on the load side of IGBT-based, PWM-type variable frequency drives, the reactor moderates high-frequency voltage transients to drop both motor operating temperatures and loud mechanical whine. By suppressing these rapid voltage spikes (dV/dt), it protects internal winding insulation and minimizes motor bearing erosion, effectively delaying premature winding shorts and extending motor service life.
- ? Built for straightforward field integration, this line reactor features safe, finger-proof terminal blocks that eliminate contact hazards while accommodating standard field wiring gauges. To give plant engineers total peace of mind regarding electrical codes and safety inspections, the entire HPS Centurion R series is backed by an industry-leading 10-year warranty and holds comprehensive UL 508, CSA C22.2 No. 47, and CE certifications.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 6.1 A
- Frequency
- 60 Hz
- Enclosure
- Type 1
Inductance7.78 mH
MaterialCopper
