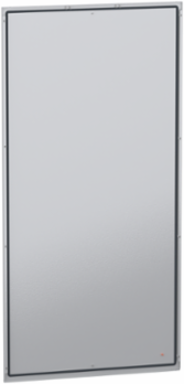

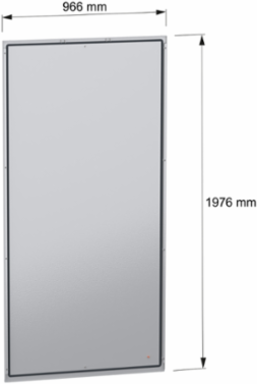

Schneider Electric NSYBPN2010 Rear Panel for PanelSeT SFN Enclosure H2000 x W1000 mm, 76.6 kg

MPN: NSYBPN2010
PPN: SCH-NSYBPN2010

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$514.03/ EA

Qty:

Loading add to cart quantity...

Description

This rear panel, designed specifically for the PanelSeT SFN Enclosure by Schneider Electric, ensures enhanced functionality and organization within electrical systems. Measuring 2000 mm in height and 1000 mm in width, it provides a robust solution for creating secure and efficient setups. With a solid construction weighing 76.6 kg, this panel is built to withstand demanding environments while ensuring compatibility with various installation requirements. An essential component for those looking to optimize their panel enclosure, it stands out with its practical design and reliability.

Specifications

Height: 2000 mm (78.74 in)

Net Weight: 76.6 kg (168.87 lb)

Mounting Location: Rear of enclosure

Material: Steel

Color: Gray RAL 7035

EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope)

RoHS Exemption Information: Yes

China RoHS Regulation: Pro-active declaration (out of scope)

Device Composition: Fixing elements, 1 rear panel

Accessory Category: Enclosure accessory

Warranty: 18 months

Width1000 mm (39.37 in)

Fixing ModeBy screws captive from outside of enclosure

Range CompatibilityPanelSeT, PanelSeT SFN

Surface FinishEpoxy-polyester powder

REACH Free of SVHCYes

Mercury FreeYes

Reach RegulationFree of SVHC above threshold

Device ApplicationMulti-purpose

Product Or Component TypeRear panel

Environmental DisclosureENVPEP2301018_V1
