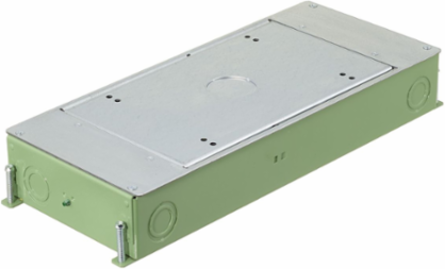

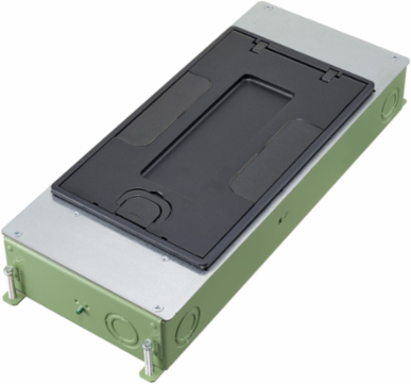

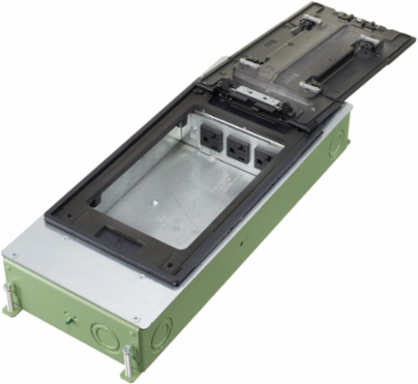

Hubbell Premise Wiring CFB2G25CRE 2-Gang Recessed Floor Box, 2.50 Inch Depth, Galvanized Steel

MPN: CFB2G25CRE
UPC: 783585695174
PPN: HBL-CFB2G25CRE
UNSPSC: 39121307

$425.75

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

SystemOne ETERNAL™ Series Concrete Floorboxes, Galvanized Stamped Steel Box, Recessed, 2-Gang CFB E-Series Box for Rectangular Covers, 2.50" Minimum Depth of Pour, Corrosion Resistant Paint

Features

Corrosion-Resistant Painted Recessed 2-Gang Rectangular Cover Floorbox
For Use In Concrete Floors
3.75" Deep Wiring Chambers

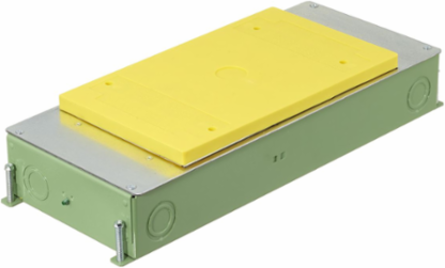

Box Includes Installation Cover & 1/2" Prepour Cap
2.50" Minimum Depth of Pour
Each Gang Includes (1) 6" Solid #12 AWG Conductor Grounding Pigtail
Pregalvanzied Stamped Steel Box with Corrosion Resistant Paint; Concentric Knock-Outs

Documentation & Downloads

Specifications

Additional

Dimensions	16.27 in x 6.62 in x 2.50 in
Type	Recessed
Height	2.50 in
Length	16.27 in
Cable Entry	Through Cover
Wiring Chamber Depth	3.75 in
Material	Galvanized Stamped Steel, 16 gauge galvanized steel
Style	2-Gang
Compliance	cULus Listed, UL 514A Listed
Color	Metallic/Green Epoxy Paint

Mounting Method	Screw Mount Device Mounting Plates
Trade Size Knock-Outs Ends	(2) 1/2", 3/8", 1"
Width	6.62 in
Mounting Type	Field Installed
Device Chamber Grounding	6 in Long #12 AWG Solid Copper Wire
Wiring Chamber Volume	(2) 47.5 in3 [778 cm3]
Finish	Green corrosion resistant epoxy paint
Number of Gang(s)	2-Gang
Industry Standard(s)	cULus; UL514
