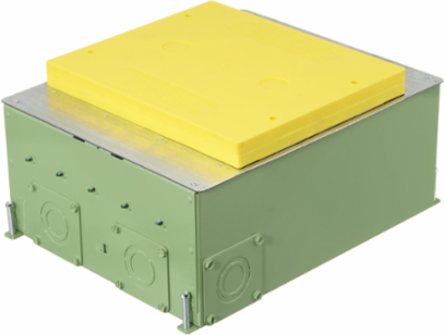

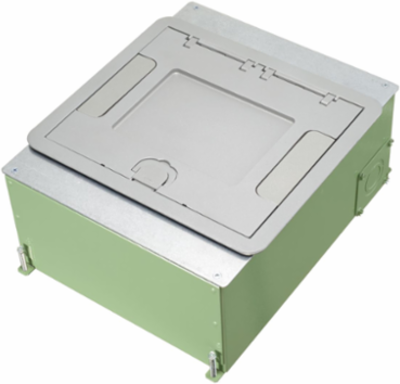

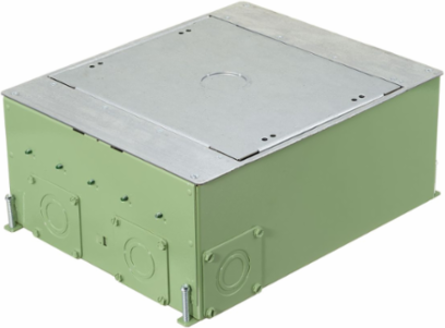

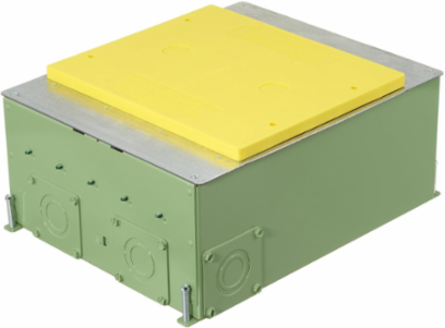

Hubbell Premise Wiring CFB45G55CRE 4/5-Gang Recessed Floor Box, 14.14 x 11.09 x 5.59 Inch, Steel, Corrosion Resistant
- MPN: CFB45G55CRE
- UPC: 783585695402
- PPN: HBL-CFB45G55CRE
- UNSPSC: 39121307
CAD
$747.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SystemOne ETERNAL™ Series Concrete Floorboxes, Galvanized Stamped Steel Box, Recessed, 4/5-Gang CFB E-Series Box for Rectangular Covers, 5.59" Minimum Depth of Pour, Corrosion Resistant Paint
Features
- Corrosion-Resistant Painted Recessed 4/5-Gang Rectangular Cover Floorbox
- For Use In Concrete Floors
- 3.75" Deep Wiring Chambers
- External High Capacity Feed-Thru Hubs Sold Separately
- 5.59" Minimum Depth of Pour
- Box Includes Installation Cover & 1/2" Prepour Cap
- Each Gang Includes (1) 6" Solid #12 AWG Conductor Grounding Pigtail
- (1) 2-Gang Dual Service & 4-Gang Single Service NEMA Spaced Plates Available
- Pregalvanzied Stamped Steel Box with Corrosion Resistant Paint; Concentric Knock-Outs;High-Capacity Feed-Through (External Hubs Purchased Separately)
Documentation & Downloads
Specifications
Additional
- Number of Gangs
- 4 or 5-Gang
- Width
- 11.09 in
- Trade Size Knock-Outs
- 2 each of 3/4", 1", 1-1/4", 2"
- Mounting Type
- Field Installed
- Application
- Concrete floors
- Finish
- Gray corrosion resistant epoxy paint
- Wiring Chamber Volumes
- (2) Small 35 in³, (2) Medium 69.5 in³, (2) Large 99 in³
- Standard
- cULus; UL514
Height5.59 in
Length14.14 in
Mounting MethodScrew Mount Device Mounting Plates
TypeRecessed
Material16 gauge galvanized steel
Device Chamber Grounding Wire6 in. long #12 AWG solid copper wire
ColorMetallic/Green Epoxy Paint
