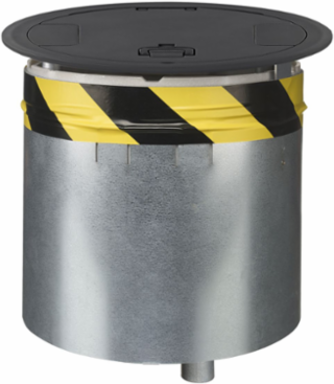

Hubbell Premise Wiring S1R10PTZBLK 10 Inch Fire-Rated Recessed Poke-Through Kit, 2 Outlets Included
- MPN: S1R10PTZBLK
- UPC: 783585548272
- PPN: HBL-S1R10PTZBLK
- UNSPSC: 39121328
CAD
$3968.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Fire Rated Poke Throughs, Recessed 10" Series, Kit, Includes (1) S1R10PTFIT, (1) S1R10CVRBLKU, (2) S1R10PSPZ, (2) S1R10PSPREPBRKT, (4) S1R10CBFPT, (3) S1R10PBFBLANK, (1) S1R10PBF075, (1) S1R10CENTERDIV, (1) S1R10PERIMDIV
Features
- For use with a 10.00” to 10.12” Drilled or Formed Concrete Round Hole
- Up to 2 Hour Fire Rating
- Step Down Installation
- (2) 20A pre-wired receptacles
Documentation & Downloads
Specifications
Additional
- Amperage
- 20A
- Number of Outlets
- (2) PreWired Duplex, 24" Leads
- Maximum Copper Cross Section - Center Chamber
- 0.0978 sq. in.
- Mounting Type
- 10" Core Hole
- Core Hole
- 10 Inch
- Minimum Concrete Floor Thickness
- 2.25 in.
- Cover Material
- Cast Aluminum
- Fitting Material
- Pre-Galvanized Steel & Intumescent
- Sub-Plates and Brackets Material
- Pre-Galvanized Steel - White Painted
- Industry Standards
- cULus Listed; Meets ADA Standards; UL 514A Listed
- Country of Origin
- US
Fire Rating1-2 Hour
Cover Load Rating1,000 lbs Static Load Through 3" Diameter Mandrel
Maximum Copper Cross Section - Perimeter Chamber0.0408 sq. in.
Size10 Inch
Hole Size Compatibility10.00 to 10.12 in. Diameter
MaterialFabricated
Cover FinishBlack Powder Paint
Bottom Feed Plates MaterialPre-Galvanized Steel
Cover Connection TypeRecessed
ColorBlack
Sub BrandSystemOne Recessed
