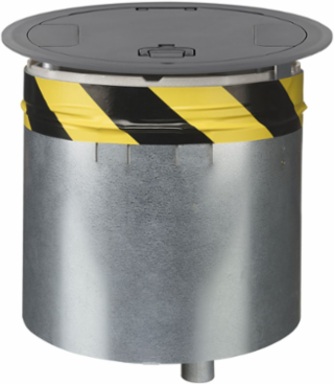

Hubbell Premise Wiring S1R10PTZGRY 10 Inch Fire-Rated Poke-Through Kit with (2) 20A Duplex Receptacles
- MPN: S1R10PTZGRY
- UPC: 783585548319
- PPN: HBL-S1R10PTZGRY
- UNSPSC: 39121328
CAD
$4166.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fire Rated Poke Throughs, Recessed 10" Series, Kit, Includes (1) S1R10PTFIT, (1) S1R10CVRGRY, (2) S1R10PSPZ, (2) S1R10PSPREPBRKT, (4) S1R10CBFPT, (3) S1R10PBFBLANK, (1) S1R10PBF075, (1) S1R10CENTERDIV, (1) S1R10PERIMDIV
Features
- For use with a 10.00” to 10.12” Drilled or Formed Concrete Round Hole
- Up to 2 Hour Fire Rating
- Step Down Installation
- (2) 20A pre-wired receptacles
Documentation & Downloads
Specifications
Additional
| Amperage | 20A |
|---|---|
| Number of Receptacles | 2 Duplex |
| Fire Rating | 1-2 Hour |
| Width | 14.7 in. |
| Material | Fabricated |
| Cover Finish | Gray Powder Paint |
| Bottom Feed Plates and Dividers Material | Pre-Galvanized Steel |
| Cover Connection Type | Recessed |
| Standard | cULus Listed; Meets ADA Standards; UL 514A Listed |
| Country of Origin | US |
| Mounting Type | 10 in. Core Hole |
|---|---|
| Cover Load Rating | 1,000 lbs Static Load through 3 in. Diameter Mandrel |
| Length | 10 in. |
| Minimum Concrete Floor Thickness | 2.25 in. |
| Cover Material | Cast Aluminum |
| Fitting Materials | Pre-Galvanized Steel & Intumescent |
| Sub-Plates and Brackets Material | Pre-Galvanized Steel - White Painted |
| Cable Entry | Through Cover |
| Color | Gray |
