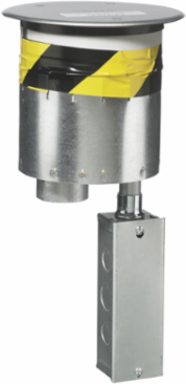

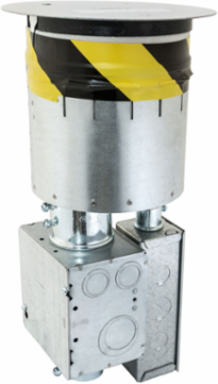

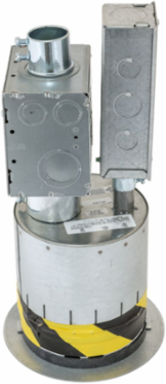

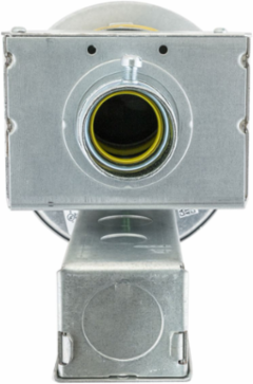

Hubbell Wiring Device-Kellems S1R6PTFIT 6 Inch Recessed Fire Rated Poke Through Fitting, Standard Product
- MPN: S1R6PTFIT
- UPC: 783585443188
- PPN: HBL-S1R6PTFIT
- UNSPSC: 39121328
CAD
$845.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fire Rated Poke Throughs, Recessed 6" Series, Through Floor Fitting With Junction Box Only, No Sub Plates
Features
- For use with a 6.00” to 6.12” Drilled or Formed Concrete Round Hole
- Up to 2 Hour Fire Rating
- Step Down Installation
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Core Hole | 6 Inch |
| Industry Standard(s) | cULus Listed |
| Size | Standard Sized Product |
| Application | 6" Fire-Rated Poke-Through Series |
| Color | Nickel |
| Mounting | 6" Core Hole |
| Standard | cULus Listed |
| Type | 6" Recessed Rated Poke Through Only |
| Engineering Drawing 1 Display Text | S1R6PTFIT AutoCAD Drawing |
| General Literature Asset 1 Display Text | Healthcare Product Solutions |
| General Literature Asset 3 Display Text | Hubbell SystemOne 4, 6 and 8 Inch Recessed Fire-Rated Poke-Throughs |
| Finish Type | Natural |
| Style | FRPT Kits |
| Description - Invoice | S1R FRPT 6 THRU FLOOR NO SUB PLATES |
| Harmonization Code | 7326908688 |
| MSDS Flag | No |
| Buy America(n) Qualified | TAA Compliant (All status valid till December 2026) |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 7.591 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585443187 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Application - For Use On | Concrete |
|---|---|
| Width | 9.200 in |
| Plate Style | Accepts S1R6xx Series |
| Standards - RoHS Compliance Status | CM |
| Cable Entry | Through Cover |
| Finish | Natural |
| Special Features | Standard Product |
| Sub Brand | SystemOne Recessed |
| Weight | 7.591 lb. |
| Engineering Drawing 2 Display Text | 6 INCH RECESSED FRPT AutoCAD Drawing |
| General Literature Asset 2 Display Text | Installation Efficient Product Solutions |
| Accessory Type | 6" FRPT |
| Mounting Type | 6" Core Hole |
| Class Code | A36 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A36A352 |
| Material | Fabricated |
| BOX SIZE | 10.700x12.800x9.200 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585443188 |
| Case Weight | 7.591 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 42.800 in |
| Pallet Weight | 512.000 lb. |
| NAICS Code | 3359326106 |
