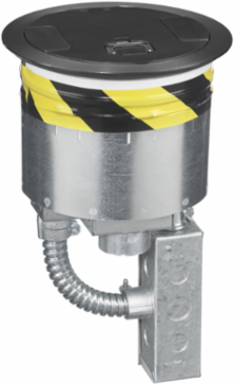

Hubbell Premise Wiring S1R8PTZZ3BLK 8 Inch Fire-Rated Recessed Poke-Through Kit with (4) 20A Receptacles
Hubbell Premise Wiring S1R8PTZZ3BLK 8 Inch Fire-Rated Recessed Poke-Through Kit with (4) 20A Receptacles
- MPN: S1R8PTZZ3BLK
- UPC: 783585444031
- PPN: HBL-S1R8PTZZ3BLK
- UNSPSC: 39121328
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2002.62/ EA
Description
Fire Rated Poke Throughs, Recessed 8" Series, Kit, (1) S1R8PTFIT1, (2) S1R8SPZ, (1) S1R8JNC3, (1) S1R8CVRBLK
Features
- For use with a 8.00” to 8.12” Drilled or Formed Concrete Round Hole
- Up to 2 Hour Fire Rating
- Step Down Installation
- (4) 20A pre-wired receptacles
Specifications
Specifications
- Country of Origin
- United States
- Core Hole
- 8 Inch
- Industry Standard(s)
- cULus Listed;Meets ADA Standards;UL 514A Listed
- Size
- Standard Sized Product
- Cable Entry
- Through Cover
- Mounting
- 8" Core Hole
- Special Features
- (4) 20A pre-wired receptacles
- Sub Brand
- SystemOne Recessed
- General Literature Asset 1 Display Text
- Hubbell SystemOne Recessed Fire-Rated Poke-Throughs
- Number Of Outlets
- (2) Two 20A Pre-Wired Receptacles, 1 or 2 Circuits, 18" Leads
- Description - Invoice
- S1R FRPT 8, 4X20A RECEP, 2 EMT, BLACK
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material
- Fabricated
- BOX SIZE
- 13.100x14.700x11.300 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585444031
- Case Weight
- 16.800 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 39.300 in
- Pallet Weight
- 554.400 lb.
Application - For Use OnConcrete
Width11.300 in
Plate Style(2) Perimeter
Application8" Fire-Rated Poke-Through Series
ColorBlack
Number of Outlet(2) Two 20A Pre-Wired Receptacles, 1 or 2 Circuits, 18" Leads
StandardcULus Listed;Meets ADA Standards;UL 514A Listed
Type8" Recessed Rated Poke Through Kit
Mounting Type8" Core Hole
StyleFRPT - Complete Kits
Freight Class Code06168002
Image Actual Or RepresentativeA
Material - Mounting HardwareMounting Hardware Included
Base Unit of MeasureEA
Carton - Gross Weight per Pack16.800 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585444030
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Contact Manufacturer
