Hubbell Premise Wiring S1R8PTFIT3 8 Inch Fire-Rated Poke-Through Kit, No Sub Plates
Hubbell Premise Wiring S1R8PTFIT3 8 Inch Fire-Rated Poke-Through Kit, No Sub Plates
- MPN: S1R8PTFIT3
- UPC: 783585443898
- PPN: HBL-S1R8PTFIT3
- UNSPSC: 39121328
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1152.00/ EA
Description

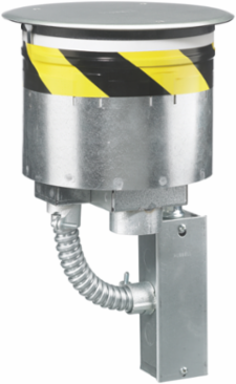

Fire Rated Poke Throughs, Recessed 8" Series, Through Floor Fitting Only, (1) S1R8JNC3, No Sub Plates
Features
- For use with a 8.00” to 8.12” Drilled or Formed Concrete Round Hole
- Up to 2 Hour Fire Rating
- Step Down Installation
- Standard Product
Specifications
Specifications
- Country of Origin
- United States
- Core Hole
- 8 Inch
- Industry Standard(s)
- cULus Listed;UL 514A Listed
- Size
- Standard Sized Product
- Cable Entry
- Through Cover
- Special Features
- Standard Product
- Sub Brand
- SystemOne Recessed
- General Literature Asset 1 Display Text
- Hubbell SystemOne Recessed Fire-Rated Poke-Throughs
- Style
- FRPT Fittings
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material
- Fabricated
- BOX SIZE
- 13.100x14.700x11.300 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585443898
- Case Weight
- 13.150 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 39.300 in
- Pallet Weight
- 433.950 lb.
Application - For Use OnConcrete
Width11.300 in
Plate StyleAccepts S1R8xx Series
Application8" Fire-Rated Poke-Through Series
Mounting8" Core Hole
StandardcULus Listed;UL 514A Listed
Type8" Recessed Rated Poke Through Kit
Mounting Type8" Core Hole
Description - InvoiceS1R FRPT 8 THRU FLOOR,NO SP, 2 INCH EMT
Harmonization Code7326908688
MSDS FlagNo
Base Unit of MeasureEA
Carton - Gross Weight per Pack13.150 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585443897
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Contact Manufacturer
