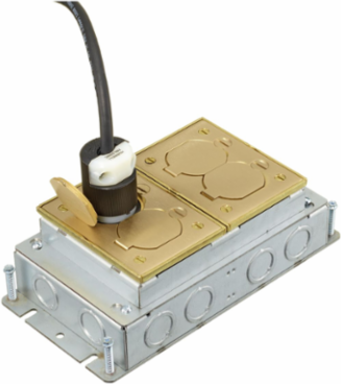

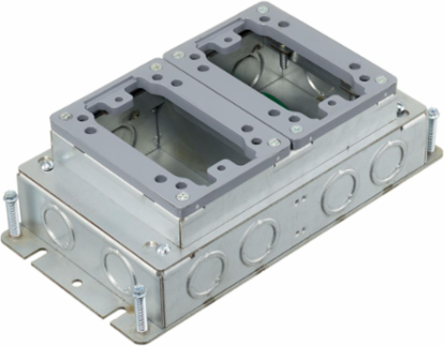

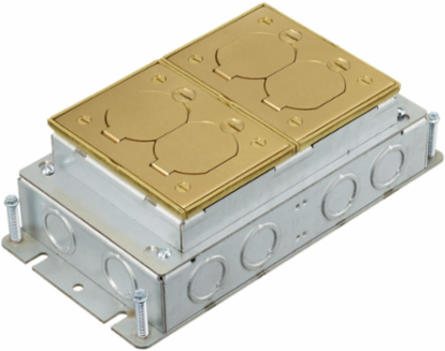

Hubbell Premise Wiring FB2422 Stamped Steel 2-Gang Floor Box, 9.25 Inch x 4.81 Inch x 2.75 Inch Depth

MPN: FB2422
UPC: 783585695938
PPN: HBL-FB2422
UNSPSC: 39121307

$243.60

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Flush Concrete Floorboxes Series, Shallow Stamped Steel Box, Rectangular, 2-Gang, 3.75" Minimum Depth of Pour

Features

2.75" minimum depth of pour
(12) ½", ¾" and (4) ¾", 1", 1-1/4" concentric knockouts
1.25" prepour and 0.50" post pour adjustment
Natural pregalvanized stamped steel floorbox
Typically used in 2nd floor and above concrete floors
Multi-service, includes (1) removable metallic low voltage divider
Each gang includes (1) 6" solid #12 AWG conductor grounding pigtail
Stamped Steel Box with Concentric Knock-Outs

Specifications

Additional

Number of Gangs	2-Gang
Length	9.25 in
Height	2.75 in
Mounting Type	Field Installed
Knockouts	16 total; (4) 3/4 in, 1 in, 1-1/4 in bottom; (4) 1/2 in, 3/4 in ends; (8) 1/2 in, 3/4 in sides
Cover Material	Tin Plate
Device Chamber Grounding	6 in #12 AWG Solid Copper Wire
Wiring Chamber Volume	35.0 in3
Type	Flush
Application	For Use in Concrete Floors

Dimensions	9.25 in x 4.81 in x 2.75 in
Width	4.81 in
Material	Pregalvanized Steel Top, PVC Spacer
Mounting Method	Screw Mount Device Mounting Plates
Box Finish	Green Powder Paint
Cover Frame Material	Thermoplastic
Low Voltage Divider	Stamped Steel
Standard	cULus Listed to UL514
Color	Natural
Construction	Fabricated
