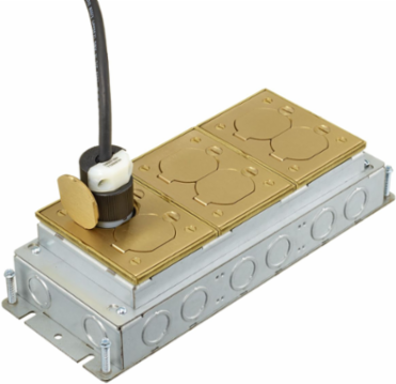

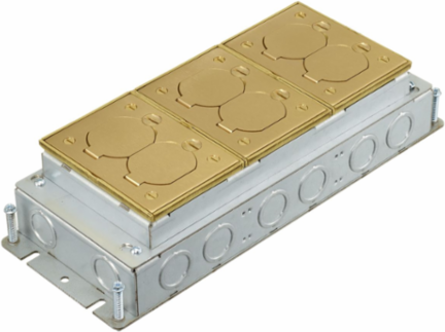

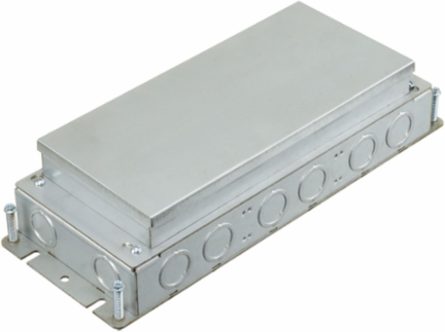

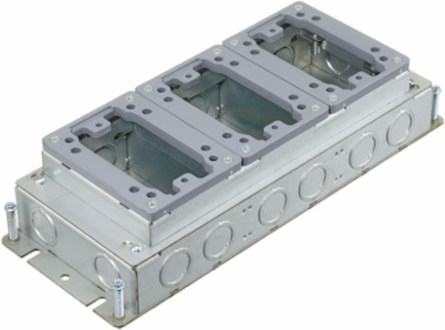

Hubbell Premise Wiring FB2423 Shallow Stamped Steel Floor Box, 3-Gang, 12.5 Inch x 4.81 Inch x 2.75 Inch Depth

MPN: FB2423
UPC: 783585695945
PPN: HBL-FB2423
UNSPSC: 39121307

$371.71

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Flush Concrete Floorboxes Series, Shallow Stamped Steel Box, Rectangular, 3-Gang, 3.75" Minimum Depth of Pour

Features

2.75" minimum depth of pour
(16) ½", ¾" and (6) ¾", 1", 1-1/4" concentric knockouts
1.25" prepour and 0.50" post pour adjustment
Natural pregalvanized stamped steel floorbox
Typically used in 2nd floor and above concrete floors
Multi-service, includes (2) removable metallic low voltage dividers
Each gang includes (1) 6" solid #12 AWG conductor grounding pigtail
Stamped Steel Box with Concentric Knock-Outs

Specifications

Additional

Size	12.5 in x 4.81 in x 2.75 in
Material	Pregalvanized Steel Top, PVC Spacer
Mounting Type	Field Installed
Knockouts	22 total: (6) 3/4 in, 1 in, 1-1/4 in bottom; (4) 1/2 in, 3/4 in ends; (12) 1/2 in, 3/4 in sides
Application	For Use in Concrete Floors
Box Type	Shallow, Rectangular
Low Voltage Divider Material	Stamped Steel
Concrete Cover	Tin Plate
Concrete Pour Post Pour Adjustment	0.50 in
Standard	cULus Listed to UL514, CSA C22.2 No 18 certified

Number of Gang(s)	3-Gang
Box Finish	Green Powder Paint
Mounting Method	Screw Mount Device Mounting Plates
Construction	Fabricated
Device Chamber Grounding	6 in #12 AWG Solid Copper Wire
Color	Natural
Cover Frame Material	Thermoplastic
Concrete Pour Prepour Adjustment	1.25 in
Minimum Depth of Pour	2.75 in
