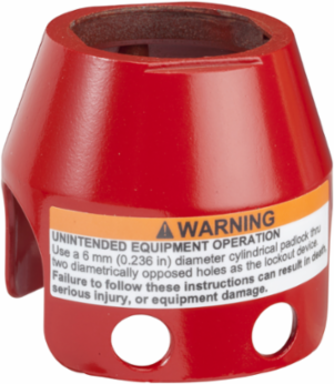

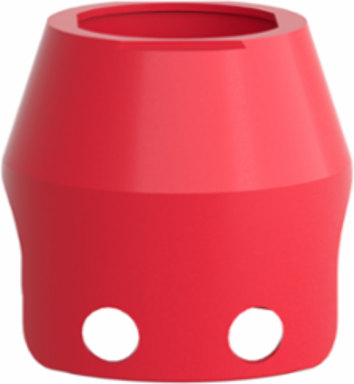

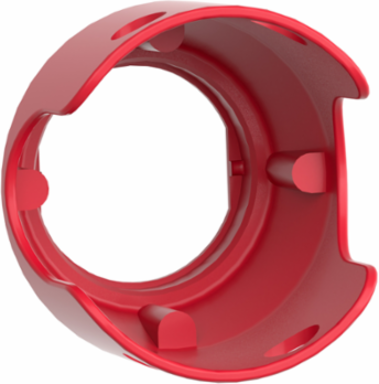

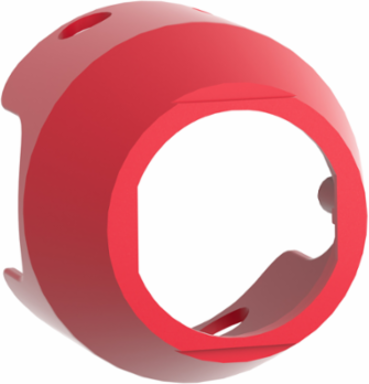

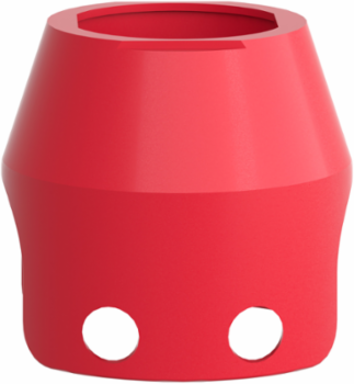

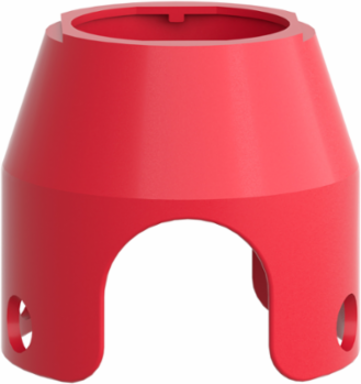

Schneider Electric ZBZ1604 Padlockable Guard for 40mm Mushroom Head Push Buttons, Metal, Red
- MPN: ZBZ1604
- PPN: SCH-ZBZ1604
CAD
$94.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony ZB, metal padlockable guard for emergency stop function has 40mm mushroom head with red color. It is compatible with Harmony XB4 and XB5 mushroom head push buttons. This metal padlockable guard is designed as an accessory to be used with push button to protect and provide a secure manner for authorized staff to operate emergency stop mode when required. It is easily installed and attached to Harmony XB4 and XB5 mushroom head push buttons units. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is ideal for severe environments, especially applications requiring high impact and vibration resistance.
Features
- Precision-engineered for the Schneider Electric Harmony range, this guard fits seamlessly around standard 40mm emergency stop operators without obstructing the operator's view. Its ergonomic circular design provides a secure shroud that prevents accidental bumping or unintended machine shutdowns in high-traffic industrial environments.
- Manufactured from high-grade zinc alloy with a corrosion-resistant finish, the ZBZ1604 is built to survive the rigors of manufacturing floors and chemical processing plants. Unlike plastic alternatives that can crack or degrade under UV exposure and mechanical stress, this metal guard maintains its structural integrity to provide long-term security for your control stations.
- While the guard provides a robust physical barrier for lockout procedures, its low-profile mounting ensures the bright red emergency button remains highly visible to personnel. This balance of security and accessibility ensures your facility meets international safety standards (ISO 13850) while providing an extra layer of protection against tampering or unauthorized machine restarts.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, United States |
|---|
Physical Attributes
| Color | Red, Red |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Customizable | 0, no |
| Accessory Destination | Ø 40 mm emergency stop push-button, for standard head |
| Carbon Footprint Of The Distribution Phase [A4] | 0.043079504980682345, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0002747903203936827, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Software Version | v6.3.0.1-18 |
| Total Lifecycle Carbon Footprint | 0.4 kg CO2 eq. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Metal padlockable guard for emergency stop function has 40mm mushroom head with black color. It is compatible with Harmony XB4 and XB5 mushroom head push buttons.. It is easily installed and attached to Harmony XB4 and XB5 mushroom head push buttons units. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; High voltage; 2020; France, FR |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; Global, GLO |
| Recyclability Potential In % | 97 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 7326908688 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Range Of Product | Harmony XB5, Harmony XB4 |
| Accessory / Separate Part Destination | Ø 40 mm emergency stop push-button, for standard head |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.07744284044129042 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.3 kg CO2 eq., 0.28367421757746814 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2506038EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Material | metal |
| Product Or Component Type | guard |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Pep Code | ENVPEP2506038EN |
| Pep Verification Date | 2025-06-30 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Accessory / Separate Part Category | isolation accessory |
| Package Weight(Lbs) | 58.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Product Compatibility | XB5AS..., XB5AT..., XB4BS..., XB4BT... |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2506038EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-06-30 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.4044713533198346 |
| Environmental Disclosure | ENVPEP2506038EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2506038EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Range Of Product | Harmony XB5, Harmony XB4 |
|---|
| Product Or Component Type | guard |
|---|
ETIM
| ETIM 8 | EC002024 |
|---|
| ETIM 9 | EC002024 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
