Weidmuller

Weidmuller 8869790000 RIM-I 3 110/230VAC RC

  • MPN: 8869790000
  • PPN: WDM-8869790000

CAD

$7.72

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

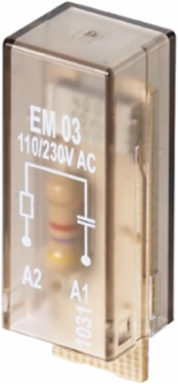

RIDERSERIES, RC filter, Rated control voltage: 110…230 V UC, Plug-in connection

Documentation & Downloads

Specifications

General Data

ColourTransparent

Approvals

ApprovalscURus, EAC
UL File Number SearchE223759
ROHSConform

Dimensions And Weights

Width11.4 mm
Height10.5 mm
Depth32.1 mm
Net weight1.9 g
Width (inches)0.449 inch
Height (inches)0.413 inch
Depth (inches)1.264 inch

Connection Data

Wire connection methodPlug-in connection

Rated Data Ul

Certificate No. (cURus)E223759

Input

Rated control voltage110...230 V UC
Protective circuitRC element
Status indicatorNo
RC filter4.7 kΩ / 10 nF

Classifications

ETIM 6.0EC002586
eClass 9.127-37-10-10
UNSPSC32-11-15-03
ETIM 7.0EC002586
eClass 10.027-37-10-10

Environmental Product Compliance

REACH SVHCLead 7439-92-1

Temperatures

Humidity40 °C / 93 % rel. humidity, no condensation
Operating temperature, min.-40 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C...70 °C
Operating temperature, max.70 °C
Storage temperature, max.70 °C
Operating temperature-40 °C...70 °C

Further Details Of Approvals / Standards

StandardsUL508
Certificate No. (cURus)E223759

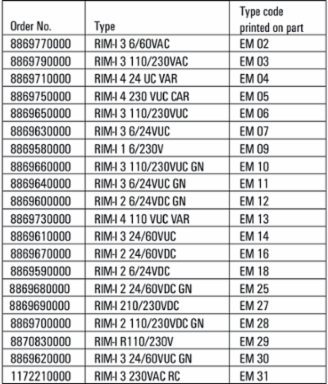

RIM-I 3 110/230VAC RC
RIM-I 3 110/230VAC RC
RIM-I 3 110/230VAC RC
RIM-I 3 110/230VAC RC
