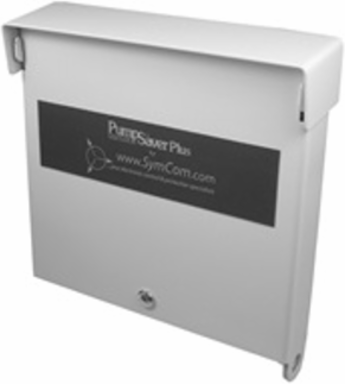

Littelfuse RM1000-3R RM1000-3R - RM1000 Series
- MPN: RM1000-3R
- UPC: 079458998214
- PPN: LTF-RM1000-3R
CAD
$676.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
RM1000-3R - RM1000 Series
Documentation & Downloads
Specifications
Key Specifications
| Input Voltage (V) | 12 to 24VDC (Supplied by RS485MS-2W) |
|---|---|
| Input Current Range (A) | 100mA (max.) |
| Communications Protocol | Modbus RTU |
| Communications Range | 50 ft, 4,000 ft with separate isolated power supply |
| Address | 1-99 (max 16 per RM-1000) |
| Termination Type | Depluggable 3 in-lbs. |
| Operating Temperature | -40° to 70°C (-40° to 158°F) |
| Humidity | Up to 85% non-condensing |
| Weight (lbs/g) | 0.375 lbs. (6.0 oz. 170.1g) |
| Maximum Input Power | 100mA |
|---|---|
| Protection Class | NEMA 3R |
| Communications Interface | RS-485 |
| Communications Baud Rate (Bps) | 1200-19200 |
| Life | Mechanical: 100,000 actuations |
| Mounting Method | Surface mountable on backplane using 4 screws; Panel thickness: 0.03 in |
| Storage Temperature (F/C) | -40° to 80°C (-40° to 176°F) |
| Dimensions | 3.62 in H x 4.54 in W x 0.90 inD (91.9 x 115.4 x 22.9 mm) |
