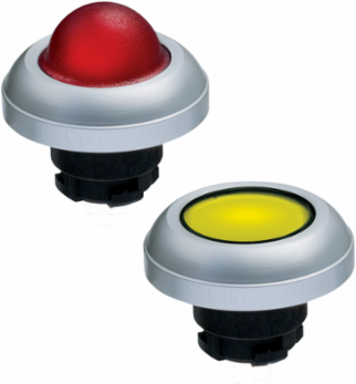

Schmersal 101188294 RMLFRT Round Illuminated Signal Light, 39.5 mm Diameter, IP65 Protection, Aluminium
- MPN: 101188294
- PPN: SCM-101188294
CAD
$74.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

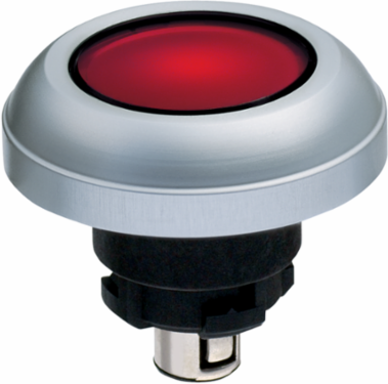

RMLFRT Round Illuminated Signal Light, 39.5 mm Diameter, IP65 Protection, Aluminium
Features
- flat dome
- for Ba9S LED's
Documentation & Downloads
Specifications

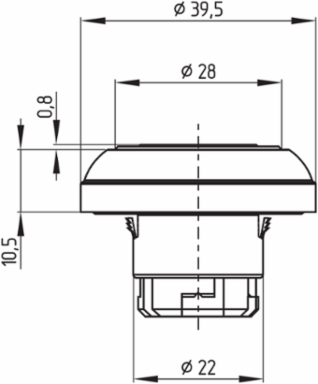

Mechanical data - Dimensions
- Diameter total
- 39.5 mm
- Diameter of the dome
- 25 mm
- Mounting diameter
- 22.3 mm
- Thickness of the front panel, maximum
- 6 mm
Height of the dome0.5 mm
Diameter of the front ring39.5 mm
Thickness, of the front panel, minimum1 mm
Spacing40 x 50 mm
General data - Features
- Illuminable
- Yes
- Fully insulated
- Yes
Mounting flangeYes
Integral system diagnostics, generalNo
General data
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
- Design
- Round | Flat dome
- Sealing type
- Membrane | Lip gaskets | Form seals
- Material of the front ring
- Aluminium
- Colour of the front ring
- Silver
VersionsIndicator light
Installation conditions (mechanical)arbitrarily
Material of the domeGlass
Colour of the domeRed
Gross weight45 g
Ambient conditions
- Degree of protection
- IP65
Ambient temperature-25 ... +75 °C
Mechanical data
- Mounting
- Mounting flange ELM
Tightening torque of the screw0.6 Nm
