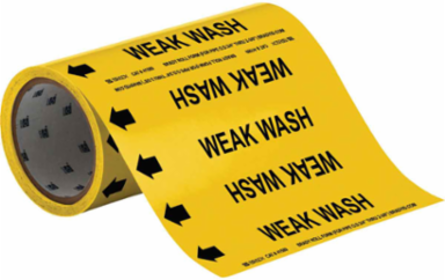

Brady 41589 Roll Form Pipe Marker: WEAK WASH, 30' H x 8" W, Roll of 30', Fits Pipes 2" Dia. or Smaller
Brady 41589 Roll Form Pipe Marker: WEAK WASH, 30' H x 8" W, Roll of 30', Fits Pipes 2" Dia. or Smaller
- MPN: 41589
- UPC: 754473415891
- PPN: BRD-41589
- UNSPSC: 55121737
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$181.13/ EA
Description
Roll Form pipe markers eliminate the need for precise measurement of pipe diameter - simply cut to the size you need.
Features
- B-946 vinyl is printed with weather resistant inks and is suited for use in outdoor applications where weatherability is a key consideration.
- Designed for permanent applications in severe indoor or outdoor environments
- High gloss, durable, flexible vinyl with a permanent cold temperature pressure sensitive acrylic adhesive
- Good chemical, oil and water resistance
Specifications
Specifications
- Applications
- Pipe and Valve Marking
- Brand Name
- Brady®
- Compatible Surface Types
- General
- Finish
- Gloss
- Pictogram Description
- Directional Arrow Symbol
- Pre-Printed Areas on Label
- Pipe Contents & Pictograms
- Printer and Label Applications
- General Identification; Pipe Marker
- Self-Adhesive Pipe Marker Format
- Roll Form, Continuous
- Adhesive Type
- Permanent Acrylic
- Indoor or Outdoor Use
- Outdoor Use
- Material
- Vinyl
- SAP B-Number
- B-946
- Dimensions
- 30 ft H x 8 in W
- Dimensions 2
- 30 ft H x 8 in W
- Height (mm/cm/m)
- 9.14 m
- Maximum Outside Pipe Diameter (mm/cm/m)
- 50.8 mm
- Maximum Service Temperature °F
- 180 °F
- Minimum Application Temperature °F
- 0 °F
- Minimum Service Temperature °F
- -40 °F
- Sign Size-General
- 30 ft x 8 in
- Thickness (mm/cm/m)
- 0.102 mm
- Width (mm/cm/m)
- 203.2 mm
Arrow DirectionLeft
ColorBlack on Yellow
Enables Industry ComplianceANSI A13.1-2007
LanguageEnglish
Pipe Marker Mounting StyleSelf-Adhesive
Primary Noun, Basic FunctionPipe Marker
Reflective TypeNon-Reflective
Text LegendWEAK WASH
Brady Material NumberB-946
Label PropertiesAggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant
Average Outdoor Durability8 to 10 Years
Dimensions (Metric)9.14 m H
Height (in/ft/yd)30 ft
Maximum Outside Pipe Diameter (in/ft/yd)2 in
Maximum Service Temperature °C82 °C
Minimum Application Temperature °C-18 °C
Minimum Service Temperature °C-40 °C
Overall SizeFits Pipes 2in Dia. or smaller
Thickness (in/ft/yd)0.004 in
Width (in/ft/yd)8 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
