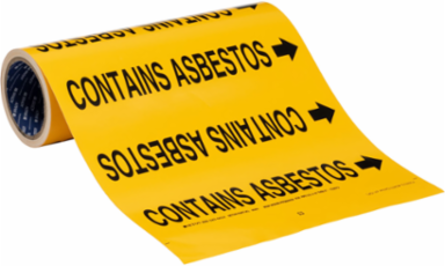

Brady 40263 Roll Form Pipe Markers, 12" W x 30' L
- MPN: 40263
- UPC: 754473402631
- PPN: BRD-40263
- UNSPSC: 55121737
CAD
$324.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The B-946 material is printed with weather resistant inks and is particularly suited for applications where weatherability is a key consideration.
Features
- High gloss, durable, flexible vinyl with a permanent cold temperature pressure sensitive acrylic adhesive
- Good chemical, oil and water resistance
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Pipe and Valve Marking
- Color
- Black on Yellow
- Enables Industry Compliance
- ANSI A13.1-2007
- Pre-Printed Areas on Label
- Arrows
- Printer and Label Applications
- General Identification; Pipe Marker
- Adhesive Type
- Permanent Acrylic
- Indoor or Outdoor Use
- Outdoor Use
- Material
- Vinyl
- SAP B-Number
- B-946
- Dimensions
- 12 in W x 30 ft L
- Maximum Outside Pipe Diameter (in/ft/yd)
- 6 in
- Maximum Service Temperature °C
- 82 °C
- Minimum Application Temperature °C
- -18 °C
- Minimum Outside Pipe Diameter (in/ft/yd)
- 2.5 in
- Minimum Service Temperature °C
- -40 °C
- Overall Size
- Fits Pipes 2.5" Dia. Thru 6in Dia.
- Roll/Tape Length (mm/cm/m)
- 9.14 m
- Thickness (mm/cm/m)
- 0.102 mm
- Width (mm/cm/m)
- 30.48 cm
Brand NameBrady®
Compatible Surface TypesGeneral
FinishGloss
Primary Noun, Basic FunctionPipe Marker
Reflective TypeNon-Reflective
Brady Material NumberB-946
Label PropertiesAggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant
Average Outdoor Durability8 to 10 Years
Dimensions 212 in W
Maximum Outside Pipe Diameter (mm/cm/m)152.4 mm
Maximum Service Temperature °F180 °F
Minimum Application Temperature °F0 °F
Minimum Outside Pipe Diameter (mm/cm/m)63.5 mm
Minimum Service Temperature °F-40 °F
Roll/Tape Length (in/ft/yd)30 ft
Thickness (in/ft/yd)0.004 in
Width (in/ft/yd)12 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliant
- No
Contains CA PROP 65 SubstanceNo
EU RoHS ComplianceNot Applicable
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
