Pass & Seymour 94004W Rotary Fan Speed Control 1.5A 4-Speed, White

MPN: 94004W
UPC: 785007940091
PPN: P-S-94004W
UNSPSC: 39122206

$41.10

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

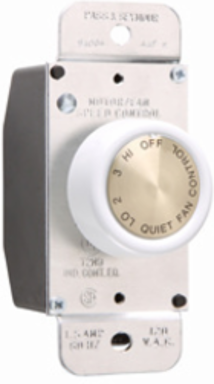

Rotary Fan Speed Control 1.5A 4-Speed, White

Features

Through the use of specially designed capacitive circuitry, these units can control fans at 3- or 4-speed levels in slide, rotary, and dual styles with virtually no fan motor noise.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Height	4.675 in
Weight	0.289 lbs
Finish	Matte
Product Line	Pass & Seymour
Number of Poles	Single Pole
Contact Rating	120V
Speed Range	4-Speed
Wire Size	#14 - #10 AWG
Load Rating	120V 1.5A (FAN MOTOR)
Dimming Compatibility	Fan Speed Only
Switch Type	Rotary
Number of Switches	1.0
Type	Fan Speed Control
Load Type	AC Fan Motor
Application Sector	Multi-Dwelling Unit; Residential
Mounting Type	Wall Box

Depth	3.0 in
Width	1.875 in
Color	White
Material	Steel,Thermoplastic
Product Volume	26.297 cu in
Standard	CSA Listed; UL Listed
Environmental Conditions	Indoor Only
Special Features	Since the development of variable fan speed controls, many fans have made an annoying humming noise when their speed was reduced. Through the use of specially designed capacitive circuitry, these units can control fans at 3- or 4-speed levels in slide, rotary, and dual styles with virtually no fan motor noise.
Voltage	120 VAC
Wire Connection Type	Flying Leads
Requires Neutral Wire	No
Features	4-Speed Fan Control; De-Hummer Fan Control
Indoor/Outdoor	Indoor
Warranty Type	Limited Lifetime Warranty
Preset	No
Frequency Rating	60 Hz
