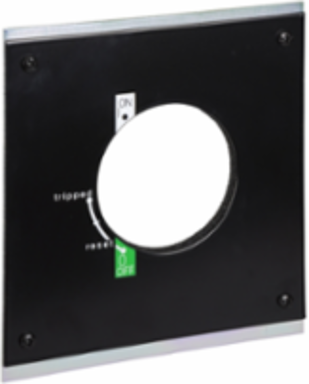

Schneider Electric LV432606 Conversion accessory for direct rotary handle, ComPact NSX 400/630, MCC switchboard control, IP43
- MPN: LV432606
- PPN: SCH-LV432606
CAD
$568.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
It is a direct rotary handle for Compact NSX 400/630 and PowerPact Multistandard L frames devices. It is suitable for isolation and it is used for the control of an MCC switchboard. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. The degrees of protection are IP43 and IK07. The switchboard door locking is depending on the device position. The switchboard door cannot be opened if the circuit breaker is ON or in tripped position. The circuit breaker cannot be closed if the door is open.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Range Of Product | ComPact NSX400...630, ComPact NSX400...630 DC |
| Local Publishable Date | 2025-04-05 |
| Stocking Flag | Y |
| Traceability | No |
| Weee Applicability | Finished product |
| Weee Exclusion Rationale | Product/component not in scope – not electric/electronic device |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range | ComPact |
| Sustainable Packaging | No |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908120 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1913 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Control Type | rotary handle |
| Important Message | This product has been switched to new ComPacT range and is no longer commercialized. |
| Product Or Component Type | MCC conversion accessory |
| Returnability | No |
| Accessory / Separate Part Category | control accessory |
| Package Weight(Lbs) | 662.200 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Ip Degree Of Protection | IP43 |
| Packaging Without Single Use Plastic | No |
General Attributes
| Range Of Product | ComPact NSX400...630, ComPact NSX400...630 DC |
|---|
| Product Or Component Type | MCC conversion accessory |
|---|
ETIM
| ETIM 8 | EC000230 |
|---|
| ETIM 9 | EC000230 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
