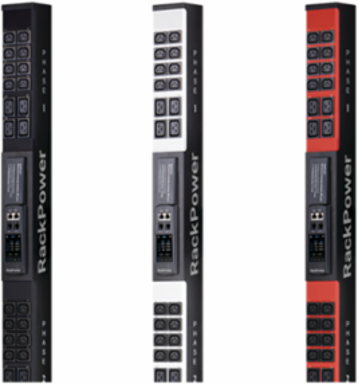

nVent Hoffman RP10208P50AP342 RackPower PDU 208V 50A, 36x C13 & 6x C19, 71 Inch Steel, Black
nVent Hoffman RP10208P50AP342 RackPower PDU 208V 50A, 36x C13 & 6x C19, 71 Inch Steel, Black
- MPN: RP10208P50AP342
- UPC: 783510387563
- PPN: HOF-RP10208P50AP342
- UNSPSC: 39121017
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3280.31/ EA
Description
RackPower Intelligent Power Distributions control power in Cabinets, OFRs and Wall-Mount enclosures. This RackPower PDU RP1000 208V / 50A, RP10208P50AP342 item 36x C13 + 6x C19 CS8365C plug with material Steel colored Black.
Features
- Single or multi-phase
- Input voltages North American 110 / 120 VAC or 208 VAC, European and Asia 230 VAC or 400 VAC
- Global plug and receptacles NEMA and IEC rated
- 5 Configuration types: RP3000, RP2000, RP1500, RP1000, RP100
- External communications and monitoring – protected and secure LAN connections
- Local and remote power monitoring of single outlets and circuits showing data for current (AMP), voltage (Volt), power (kW), energy consumption (kWh) and power factor of entire PDU with a metering accuracy to within +/- 1%
- Remote power on/off switch
- Field replaceable, “hot-swappable”, smart monitor (RP Meter) and DC module
- 19-in. Rack Mounting (1 and 2 RU offering)
- Versatile vertical / rack and cabinet mounting
- Surge protection
- Dual power feed entry for single phase RackPower PDUs
- Temperature Sensor or Temperature and Humidity Sensor
- Power cord whip – various lengths, colors and plugs
- Various cord length and plug styles available; also available in LSZH (low smoke zero halogen)
- Mounting hardware included
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 90
- Product Family
- RackPower
- Finish
- Powder Coated
- Color
- Jet Black
- Voltage AC
- 208
- Socket Quantity
- 42
- Plug Type
- CS8365C
- Sub Brand
- --
- Output Voltage
- 208 VAC
- Wattage
- 10400 Watts
- Receptacle
- 36x C13, 6x C19
- Display
- No
- Mounting
- Yes
- Cable Length
- 78.75 inch
- Length
- 71 inch
- Height
- 4 inch
- Insulation
- No
Height (H)1,800
Depth (D)85
MaterialMild Steel
Color CodeRAL 9005
Electrical Load Rating50
Number of Phases3
Socket Type(36) C13
Weight38.5
Input Voltage208 VAC
Maximum Amperage Rating50 Amps
Number of Receptacles42
ControlNo
EnclosureYes
Cable Size6 AWG
ConnectionCS8365C
Width3 inch
Environmental ConditionsIndoor
