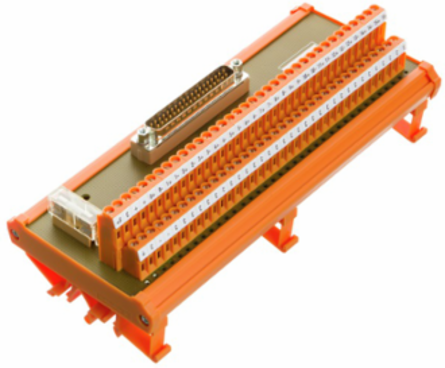

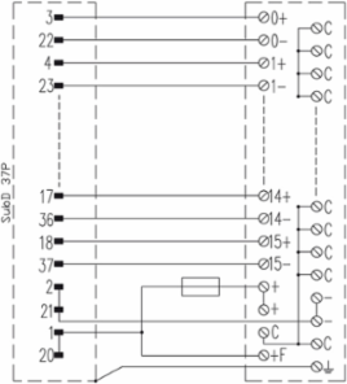

Weidmuller 9448020000 RS 16AIO DP SD S
- MPN: 9448020000
- PPN: WDM-9448020000
CAD
$263.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Interface, RS, 2-wire, Screw connection
Specifications
General Data
| LED status display per channel | No |
|---|---|
| Voltage point of measurement | No |
| Type of test point | No |
| Power supply fuse | 3.15 A |
| Disconnection per channel | No |
|---|---|
| Current-measuring testpoint | No |
| LED status of the supply voltage | No |
| Common pole polarity | Positive or negative can be selected using jumper |
Approvals
| Approvals | CE, EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 205 mm |
|---|---|
| Width | 87 mm |
| Height | 81 mm |
| Net weight | 394 g |
| Length (inches) | 8.071 inch |
|---|---|
| Width (inches) | 3.425 inch |
| Height (inches) | 3.189 inch |
Supply Connection
| Type of connection | Screw connection |
|---|---|
| Clamping range, max. | 6 mm² |
| Solid, max. H05(07) V-U | 6 mm² |
| Flexible, max. H05(07) V-K | 4 mm² |
| Flexible with sleeve, min. | 0.5 mm² |
| Wire cross-section, min. AWG | AWG 26 |
| Tightening torque, min. | 0.5 Nm |
| Stripping length | 6 mm |
| Clamping range, min. | 0.13 mm² |
|---|---|
| Solid, min. H05(07) V-U | 0.5 mm² |
| Flexible, min. H05(07) V-K | 0.5 mm² |
| Flexible with sleeve, max. | 2.5 mm² |
| Ferrule with plastic collar, max. | 2.5 mm² |
| Wire cross-section, max. AWG | AWG 12 |
| Tightening torque, max. | 0.6 Nm |
Insulation Coordination (En50178)
| According to | DIN EN 50178 |
|---|---|
| Surge voltage category | III |
| Pulse voltage test (1,2/50μs) | 0.8 kV |
| Rated insulation voltage | < 50 V AC |
|---|---|
| Pollution severity level | 2 |
| Insulation test voltage | 0.35 kVAC |
Ratings Data
| Operating voltage | ≤ 25 V AC / 50 V DC |
|---|---|
| Max. current per channel | 0.5 A |
| Max. current for common pole | 3.15 A |
|---|
Connection Data
| Connection to PLC | 37-pole D-SUB male connector |
|---|---|
| Number of poles (control side) | 37-pole plug |
| Connection supply | LP2N 5.08mm |
| Protective earth connection | Shielding in SUB-D plug-in connector |
| Connection on control side | D-sub connectors, acc. to IEC 60807 / DIN 41652 |
|---|---|
| Connection (field side) | LP2N 5.08mm |
| Wiring system | 2-wire |
Connection Field
| Type of connection | Screw connection |
|---|---|
| Clamping range, max. | 6 mm² |
| Solid, max. H05(07) V-U | 6 mm² |
| Flexible, max. H05(07) V-K | 4 mm² |
| Flexible with sleeve, min. | 0.5 mm² |
| Min. wire cross-section, AWG | AWG 26 |
| Tightening torque, min. | 0.5 Nm |
| Stripping length | 6 mm |
| Clamping range, min. | 0.13 mm² |
|---|---|
| Solid, min. H05(07) V-U | 0.5 mm² |
| Flexible, min. H05(07) V-K | 0.5 mm² |
| Flexible with sleeve, max. | 2.5 mm² |
| Sleeve with plastic collar, max. | 2.5 mm² |
| Max. wire cross-section, AWG | AWG 12 |
| Tightening torque, max. | 0.6 Nm |
Classifications
| ETIM 6.0 | EC002780 |
|---|---|
| eClass 9.0 | 27-14-11-52 |
| eClass 10.0 | 27-14-11-52 |
| ETIM 7.0 | EC002780 |
|---|---|
| eClass 9.1 | 27-14-11-52 |
| UNSPSC | 30-21-18-01 |
Temperatures
| Operating temperature, max. | 50 °C |
|---|---|
| Storage temperature, max. | 60 °C |
| Operating temperature | -20...50 °C |
| Operating temperature, min. | -20 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40...60 °C |
