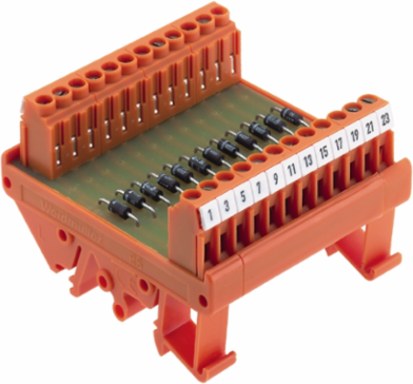

Weidmuller 8022901001 RSD 10 LP/LP
- MPN: 8022901001
- PPN: WDM-8022901001
CAD
$153.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Interface, RSD, Free diode, Screw connection
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE
ROHSConform
Dimensions And Weights
- Length
- 60 mm
- Width
- 70 mm
- Height
- 42 mm
- Net weight
- 115 g
Length (inches)2.362 inch
Width (inches)2.756 inch
Height (inches)1.654 inch
Insulation Coordination (En50178)
- According to
- DIN EN 50178
- Surge voltage category
- II
- Pulse voltage test (1,2/50μs)
- 2 kV
Rated insulation voltage230 V
Pollution severity level2
Insulation test voltage1.2 kVAC
Connection Data
- Type of component
- Diode 1N4007

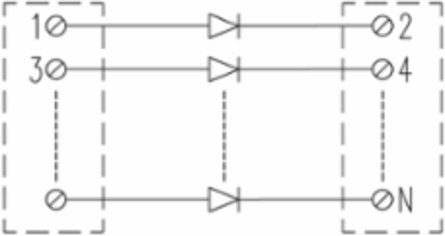

ConfigurationThrough diode
Connection Field
- Type of connection
- Screw connection
- Clamping range, max.
- 6 mm²
- Solid, max. H05(07) V-U
- 6 mm²
- Flexible, max. H05(07) V-K
- 4 mm²
- Flexible with sleeve, min.
- 0.5 mm²
- Min. wire cross-section, AWG
- AWG 26
- Tightening torque, min.
- 0.5 Nm
- Stripping length
- 6 mm
Clamping range, min.0.13 mm²
Solid, min. H05(07) V-U0.5 mm²
Flexible, min. H05(07) V-K0.5 mm²
Flexible with sleeve, max.2.5 mm²
Sleeve with plastic collar, max.2.5 mm²
Max. wire cross-section, AWGAWG 12
Tightening torque, max.0.6 Nm
Classifications
- ETIM 6.0
- EC002780
- eClass 9.0
- 27-14-11-52
- eClass 10.0
- 27-14-11-52
ETIM 7.0EC002780
eClass 9.127-14-11-52
UNSPSC30-21-18-01
Temperatures
- Operating temperature, max.
- 55 °C
- Storage temperature, max.
- 60 °C
- Operating temperature
- 0...55 °C
Operating temperature, min.0 °C
Storage temperature, min.-40 °C
Storage temperature-40...60 °C
Rating Data
- Rated voltage (text)
- 230 V
- Components
- Diode
- Max. recurring peak voltage
- 1,000 V
Rated current per connection1 A
Value1N4007
