Weidmuller 1444800000 RSV1,6 LSF18 GR 3,2 AU
- MPN: 1444800000
- PPN: WDM-1444800000
CAD
$71.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

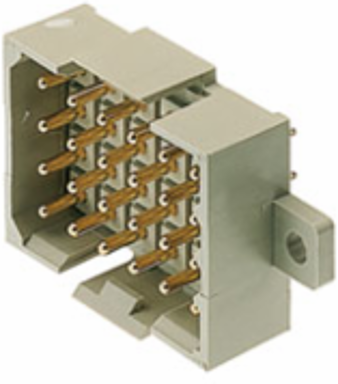

PCB plug-in connector, male header, Flange, THT solder connection, 5.00 mm, Number of poles: 18, 180°, Solder pin length (l): 3.2 mm, Gold-plated, Pebble grey, Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (UR)
- UR
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (UR)E92202
Approvals
- Approvals
- CSA, EAC, UR
- UL File Number Search
- E92202
ROHSConform

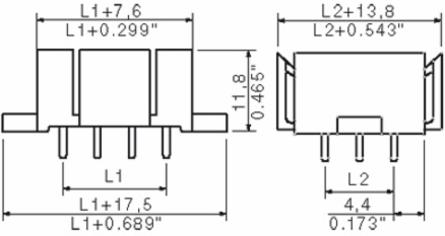

Dimensions And Weights
- Height
- 15 mm
- Height of lowest version
- 11.8 mm
Height (inches)0.591 inch
Net weight8.52 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984

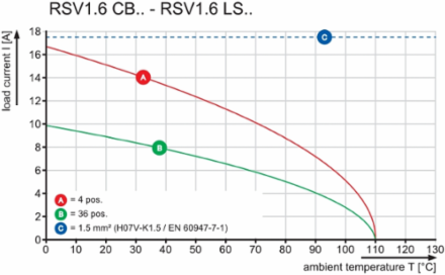

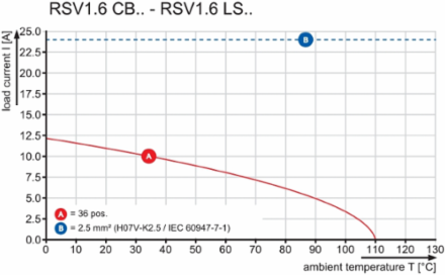

- Rated current, max. number of poles (Tu=20°C)
- 10 A
- Rated current, max. number of poles (Tu=40°C)
- 8.5 A
- Rated voltage for surge voltage class / pollution degree III/2
- 320 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 2.5 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 4 kV
Rated current, min. number of poles (Tu=20°C)14 A
Rated current, min. number of poles (Tu=40°C)12 A
Rated voltage for surge voltage class / pollution degree II/2500 V
Rated voltage for surge voltage class / pollution degree III/3250 V
Rated impulse voltage for surge voltage class/ pollution degree III/22.5 kV
Short-time withstand current resistance3 x 1s with 120 A
Material Data
- Insulating material
- Wemid (PA)
- Colour chart (similar)
- RAL 7032
- Comparative Tracking Index (CTI)
- ≥ 600
- GWIT
- 960 °C
- Contact material
- Copper alloy
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 100 °C
- Temperature range, installation, max.
- 100 °C
ColourPebble grey
Insulating material groupI
UL 94 flammability ratingV-0
GWFI960 °C
Contact surfaceGold-plated
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-25 °C
Classifications
- ETIM 6.0
- EC002637
- eClass 9.0
- 27-44-04-02
- eClass 10.0
- 27-44-04-02
ETIM 7.0EC002637
eClass 9.127-44-04-02
UNSPSC30-21-18-10
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Packing
- Packaging
- Box
- VPE width
- 111 mm
VPE length46 mm
VPE height180 mm
System Specifications
- Product family
- OMNIMATE Signal - series RSV
- Mounting onto the PCB
- THT solder connection
- Pitch in inches (P)
- 0.197 inch
- Number of poles
- 18
- Solder pin length (l)
- 3.2 mm
- Solder pin dimensions
- d = 0.97 mm
- Solder eyelet hole diameter tolerance (D)
- + 0,1 mm
- L1 in inches
- 0.984 inch
- Pin series quantity
- 3
- Touch-safe protection acc. to DIN VDE 0470
- IP20 plugged
- Plugging force/pole, max.
- 9 N
Type of connectionBoard connection
Pitch in mm (P)5 mm
Outgoing elbow180°
Number of solder pins per pole1
Tolerance of solder pin position± 0.20 mm
Solder eyelet hole diameter (D)1.3 mm
L1 in mm25 mm
Number of rows1
Touch-safe protection acc. to DIN VDE 57 106Safe from finger touch, plugged
Can be codedYes
Pulling force/pole, max.18 N
Notes
- Notes
- Additional colours on request Rated current related to rated cross-section & min. No. of poles. Spacing between rows: see hole layout Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Rated Data Acc. To Csa
- Institute (CSA)
- CSA
- Rated voltage (Use group C / CSA)
- 300 V
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (CSA)53975-13
Rated current (Use group C / CSA)13 A
