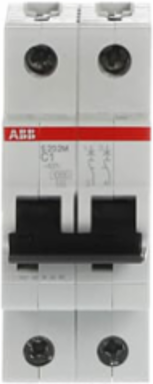

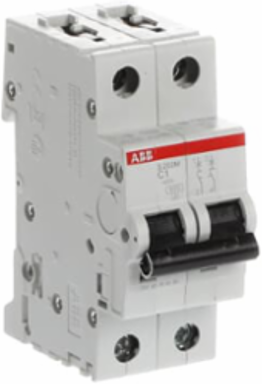

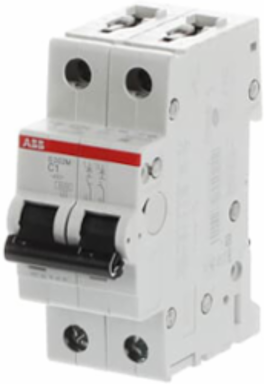

ABB 2CDS272001R0014 S202M-C1 Miniature Circuit Breaker - 2P - C - 1 A
- MPN: 2CDS272001R0014
- PPN: ABB-2CDS272001R0014
- UNSPSC: 39121603
CAD
$202.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.
Specifications
Installation
- Instructions and Manuals
- 2CDS207104P0002
Dimensions
- Width in Number of Modular Spacings
- 2
- Product Net Height
- 88 mm
- Product Net Weight
- 0.25 kg
- Built-In Depth (t2)
- 69 mm
Product Net Width35 mm
Product Net Depth / Length69 mm
Pole Net Weight0.125 kg
Dimension Diagram2CDC022007F0010
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Technical
- Standards
- IEC/EN 60898-1CSA 22.2 No. 235IEC/EN 60947-2UL 1077
- Rated Operational Voltage
- acc. to IEC 60898-1 400 V ACacc. to IEC 60947-2 440 V AC
- Rated Insulation Voltage (Ui)
- acc. to IEC/EN 60664-1 440 V
- Dielectric Test Voltage
- 50/60 Hz, 1 min: 2 kV
- Rated Current (In)
- 1 A
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (230 V AC) 25 kA(400 V AC) 15 kA(440 V AC) 15 kA
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (230 V AC) 7.5 kA
- Rated Frequency (f)
- 50 / 60 Hz
- Power Supply Connection
- Arbitrary
- Energy Limiting Class
- 3
- Mechanical Endurance
- 20000 cycle
- Number of Protected Poles
- 2
- Tightening Torque
- 2.8 N·m
- Actuator Marking
- I / O
- Housing Material
- Insulation Group II, RAL 7035
- Mounting Position
- any
- Accessories Available
- Yes
- Installation Size
- acc. to DIN 43880 1
Tripping CharacteristicC
Operational VoltageMaximum (Incl. Tolerance) 125 V DCMaximum (Incl. Tolerance) 440 V ACMinimum 12 V ACMinimum 12 V DC
Rated Impulse Withstand Voltage (Uimp)4 kVat 2000 m 5 kVat Sea Level 6.2 kV
Input Voltage TypeAC/DC
Rated Short-Circuit Capacity(AC) 10 kA(230 V AC) 10 kA(400 V AC) 10 kA
Rated Conditional Short-Circuit Current (Inc)(230 V) 15 kA(400 V) 25 kA
Frequency (f)50 Hz
Power Loss2.8 Wat Rated Operating Conditions per Pole 1.4 W
Contact Position IndicationRed ON / Green OFF
Electrical Endurance20000 AC cycle
Number of Poles2
Overvoltage CategoryIII
Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal
Actuator MaterialInsulation Group II, Black, Sealable
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Recommended Screw DriverPozidriv 2
Connecting CapacityBusbar 10 / 10 mm²Flexible with Ferrule 0.75 ... 25 mm²Flexible 0.75 ... 25 mm²Rigid 0.75 ... 35 mm²Stranded 0.75 ... 35 mm²
Terminal TypeScrew Terminals
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108467A7833
Classifications
- ETIM 9
- EC000042 - Miniature circuit breaker (MCB)
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- CN8
- 8536 20 10
- IDEA Granular Category Code (IGCC)
- 4897 >> Miniature circuit breakers
EPLAN Function DefinitionCircuit breaker / Double circuit-breaker / Double circuit breaker 1_2_3_4
WEEE B2C / B2BBusiness To Business
eClassV11.0 : 27141901
Object Classification CodeF
Environmental
- Ambient Air Temperature
- Operation -25 ... +55 °CStorage -40 ... +70 °C
- Degree of Protection
- IP20Enclosure with Cover IP40
- Environmental Conditions
- 28 cycleswith 55 °C / 90-96 %and 25 °C / 95-100 %
- Resistance to Shock acc. to IEC 60068-2-27
- 25g 2 shocks 13 ms
- RoHS Information
- 2CDK400003K0203
Reference Ambient Air Temperature30 °C
Pollution Degree3
Resistance to Vibrations acc. to IEC 60068-2-65g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration9AKK107492A1906
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 90 %
- Offered with Extended Lifetime
- Product Durability
Sustainable Material Content0 %
Offered with Takeback ServicesTake Back for Recycling
Technical UL/CSA
- Maximum Operating Voltage UL/CSA
- 125 V DC480Y/277 V AC
- Connecting Capacity UL/CSA
- Busbar 14-8 AWGConductor 14-4 AWG
Interrupting Rating acc. to UL1077(125 V DC) 10 kA(277 V AC) 6 kA(480Y / 277 V AC) 6 kA
Tightening Torque UL/CSA18 in·lb
Ordering
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 1.3 kg
- E-Number (Sweden)
- 2101218
Package Level 1 Unitscarton 5 piece
E-Number (Finland)3210791
