Weidmuller 1728130000 S2L 3.50/34/90G 3.5SN BK BX
- MPN: 1728130000
- PPN: WDM-1728130000
CAD
$9.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

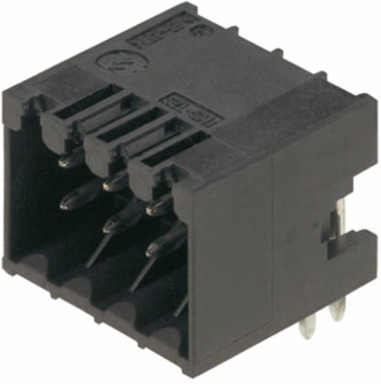

PCB plug-in connector, male header, closed side, THT solder connection, 3.50 mm, Number of poles: 34, 90°, Solder pin length (l): 3.5 mm, tinned, black, Box
Specifications
Rated Data Acc. To Ul 1059
- Institute (UR)
- UR
- Rated voltage (Use group B / UL 1059)
- 150 V
- Rated current (Use group B / UL 1059)
- 10 A
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (UR)E60693
Rated voltage (Use group C / UL 1059)50 V
Rated current (Use group C / UL 1059)10 A
Approvals
- Approvals
- CSA, EAC, UR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 60.9 mm
- Height
- 14 mm
- Height of lowest version
- 10.5 mm
- Depth (inches)
- 0.559 inch
Width (inches)2.398 inch
Height (inches)0.551 inch
Depth14.2 mm
Net weight8.568 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
- Rated current, max. number of poles (Tu=20°C)
- 10 A
- Rated current, max. number of poles (Tu=40°C)
- 8.5 A
- Rated voltage for surge voltage class / pollution degree III/2
- 125 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 2.5 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 2.5 kV
Rated current, min. number of poles (Tu=20°C)10 A
Rated current, min. number of poles (Tu=40°C)9 A
Rated voltage for surge voltage class / pollution degree II/2250 V
Rated voltage for surge voltage class / pollution degree III/380 V
Rated impulse voltage for surge voltage class/ pollution degree III/22.5 kV
Short-time withstand current resistance3 x 1s with 77 A
Material Data
- Insulating material
- PBT
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 200
- UL 94 flammability rating
- V-0
- Contact surface
- tinned
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 100 °C
- Temperature range, installation, max.
- 100 °C
Colourblack
Insulating material groupIIIa
Insulation strength≥ 108 Ω
Contact materialCopper alloy
Layer structure of solder connection2-3 µm Ni / 5-7 µm Sn glossy
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-30 °C
Classifications
- UNSPSC
- 30-21-18-10
Packing
- Packaging
- Box
- VPE width
- 70 mm
VPE length55 mm
VPE height105 mm
System Specifications
- Product family
- OMNIMATE Signal - series B2L/S2L 3.50 - 2-row
- Mounting onto the PCB
- THT solder connection
- Pitch in inches (P)
- 0.138 inch
- Number of poles
- 34
- Solder pin length (l)
- 3.5 mm
- Solder pin dimensions
- d = 1.0 mm, Octagonal
- Solder eyelet hole diameter tolerance (D)
- + 0,1 mm
- L1 in inches
- 2.205 inch
- Pin series quantity
- 2
- Touch-safe protection acc. to DIN VDE 0470
- IP 10
- Plugging cycles
- 25
- Pulling force/pole, max.
- 4 N
Type of connectionBoard connection
Pitch in mm (P)3.5 mm
Outgoing elbow90°
Number of solder pins per pole1
Tolerance of solder pin position± 0.20 mm
Solder eyelet hole diameter (D)1.3 mm
L1 in mm56 mm
Number of rows1
Touch-safe protection acc. to DIN VDE 57 106Safe from back-of-hand touch
Can be codedYes
Plugging force/pole, max.5 N
Notes
- Notes

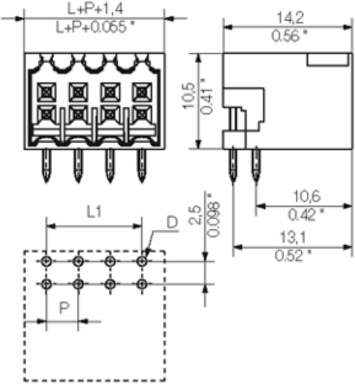

- Additional colours on request Gold-plated contact surfaces on request Spacing between rows: see hole layout Rated current related to rated cross-section & min. No. of poles. Diameter of solder eyelet D = 1.3+0.1 mm P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Rated Data Acc. To Csa
- Institute (CSA)
- CSA
- Rated voltage (Use group B / CSA)
- 150 V
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (CSA)200039-1488444
Rated current (Use group B / CSA)5 A
