Weidmuller 2559340000 S2L 3.50/42/180F 3.5SN OR BX

MPN: 2559340000
PPN: WDM-2559340000

$13.49

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

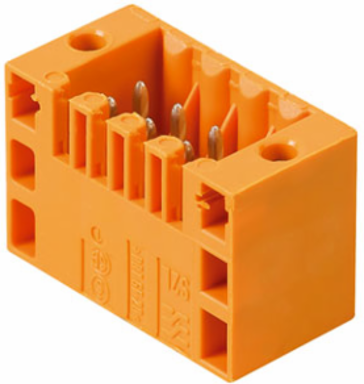

PCB plug-in connector, male header, Flange, THT solder connection, 3.50 mm, Number of poles: 42, 180°, Solder pin length (l): 3.5 mm, tinned, orange, Box

Specifications

Rated Data Acc. To Ul 1059

Rated voltage (Use group B / UL 1059)	150 V

Rated current (Use group B / UL 1059)	10 A

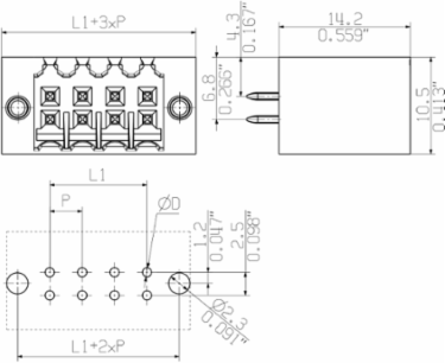

Dimensions And Weights

Width	80.5 mm
Height	17.7 mm
Height of lowest version	14.2 mm
Depth (inches)	0.413 inch

Width (inches)	3.169 inch
Height (inches)	0.697 inch
Depth	10.5 mm
Net weight	0 g

Rated Data Acc. To Iec

tested acc. to standard	IEC 60664-1, IEC 61984
Rated current, max. number of poles (Tu=20°C)	10 A
Rated current, max. number of poles (Tu=40°C)	8.5 A
Rated voltage for surge voltage class / pollution degree III/2	125 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	2.5 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	2.5 kV

Rated current, min. number of poles (Tu=20°C)	10 A
Rated current, min. number of poles (Tu=40°C)	9 A
Rated voltage for surge voltage class / pollution degree II/2	250 V
Rated voltage for surge voltage class / pollution degree III/3	80 V
Rated impulse voltage for surge voltage class/ pollution degree III/2	2.5 kV
Short-time withstand current resistance	3 x 1s with 77 A

Material Data

Insulating material	PBT
Colour chart (similar)	RAL 2000
Comparative Tracking Index (CTI)	≥ 200
UL 94 flammability rating	V-0
Contact material	Copper alloy
Layer structure of solder connection	2-3 µm Ni / 5-7 µm Sn glossy
Storage temperature, max.	55 °C
Operating temperature, min.	-50 °C
Temperature range, installation, min.	-30 °C

Colour	orange
Insulating material group	IIIa
Insulation strength	≥ 108 Ω
GWFI	960 °C
Contact surface	tinned
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %
Operating temperature, max.	100 °C
Temperature range, installation, max.	100 °C

Classifications

ETIM 6.0	EC002637
eClass 9.0	27-44-04-02
eClass 10.0	27-44-04-02

ETIM 7.0	EC002637
eClass 9.1	27-44-04-02

Packing

Packaging	Box
VPE width	0

VPE length	0
VPE height	0

System Specifications

Product family	OMNIMATE Signal - series B2L/S2L 3.50 - 2-row
Mounting onto the PCB	THT solder connection
Pitch in inches (P)	0.138 inch
Number of poles	42
Solder pin length (l)	3.5 mm
Solder eyelet hole diameter (D)	1.3 mm
L1 in mm	70 mm
Pin series quantity	2
Touch-safe protection acc. to DIN VDE 0470	IP 10
Plugging cycles	25
Pulling force/pole, max.	4 N

Type of connection	Board connection
Pitch in mm (P)	3.5 mm
Outgoing elbow	180°
Number of solder pins per pole	1
Solder pin dimensions	d = 1.0 mm, Octagonal
Solder eyelet hole diameter tolerance (D)	+ 0,1 mm
L1 in inches	2.758 inch
Touch-safe protection acc. to DIN VDE 57 106	Safe from back-of-hand touch
Can be coded	Yes
Plugging force/pole, max.	5 N

Notes

IPC conformity	Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
