Nvent Hoffman

Nvent Hoffman S2MBC Syspend 281-Max Base Coupling, 5.00x5.00x5.20, Black, Aluminum

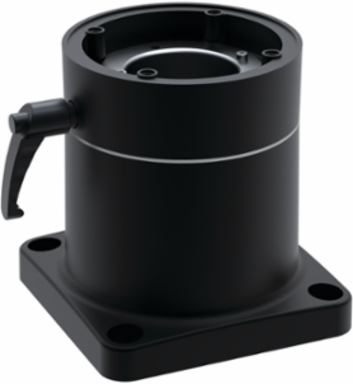

Syspend 281-Max Base Coupling, 5.00x5.00x5.20, Black, Aluminum
  • MPN: S2MBC
  • UPC: 783510188153
  • PPN: HOF-S2MBC
  • UNSPSC: 39121325

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$813.08/ EA

Description

For directly mounting the enclosure on horizontal surfaces enabling 300-degree enclosure rotation. This Syspend 281-Max Base Coupling, S2MBC item measures 5.00x5.00x5.20 inches with a material of Aluminum colored Black.

Features

  • Coupling can rotate 300 degrees with stop
  • Gasket and mounting hardware are included
  • Surface mounting fasteners are not provided
  • Assembled Syspend 281 HMI Arm System has a max weight load of 281 lb. (127.7 kg)

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
108
Protection Rating
IP65
Finish
Powder Coated
Color Code
RAL 9005
Sub Brand
Syspend
Size
5.00x5.00x5.20 in
Height (H)130
Depth (D)108
Product FamilySyspend 281-Max
ColorJet Black
Weight4.8
MaterialAluminum
