Brady S3100W-LEAN-KIT S3100-W_LEAN_BWS SFID SUITE KIT
- MPN: S3100W-LEAN-KIT
- UPC: 754473607593
- PPN: BRD-S3100W-LEAN-KIT
- UNSPSC: 45101519
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Get everything you need to easily create a visual workplace with this Lean and Visual workplace kit. From materials to software, this kit has you covered.
Features
- Save more than 18% when you purchase a kit instead of purchasing the products individually
- The BradyPrinter S3100 with Wi-Fi connectivity is so easy to use, anyone in your facility can simply walk up, create and print right on the spot
- Easily create custom signs, labels and pipemarkers with the Safety and Facility Identification Software Suite included to keep your facility safe and compliant
- This B-595 low-shrink vinyl with ultra-aggressive adhesive withstands the elements indoors and out and is ideal for labeling a variety of industrial surfaces
- The B-581 material has an aggressive adhesive that stays in place but removes cleanly without leaving adhesive residue making it ideal for 5S applications
- Magnetic Supply (B-509) is perfect for reusable, repositionable, and lean/5S identification applications
Specifications
Key Specifications
- Accessories Available
- Cutter Cleaning Tool; Dust Cover; Media Wipers; Print Head Cleaning Swaps (cat# PCK-6); Printhead Cleaning Pen (cat# 64692); Rolling Case
- Auto Shut-Off / Power Conserve
- Yes
- Barcode Capability
- Yes
- Barcode Symbologies - Linear
- Code 128 Auto; Code 39; EAN/JAN-13; Interleaved 2 of 5 UPCA; More Through Brady Workstation
- Built-In Label Wizards
- Arc Flash; Custom Label; General Templates; GHS/CLP; Pipe Marker; PreMade Labels; Right-to-Know; Tags; WHMIS
- Calibration Required
- No
- Compatible Media
- B30-
- Custom Media Parts Available
- No
- Cutter Type
- Auto Cutter
- Display Type
- Color Touch Screen
- Font Sizes
- 0.05 in to 3.5 in Text
- Includes

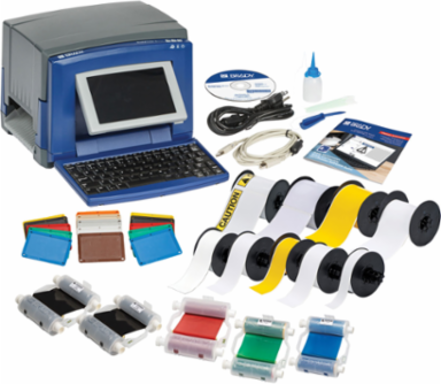

- (1) 1.125 In B-581 White Repositionable Vinyl Label Roll (B30C-1125-581-WT); (1) 2.25 In B-581 White Repositionable Vinyl Label Roll (B30C-2250-581-WT); (1) 2.25 In B-595 White Vinyl Label Roll (B30C-2250-595-WT); (1) 2.25 In B-595 Yellow Vinyl Label Roll (B30C-2250-595-YL); (1) 2.25x3.75 In B-595 White Label Roll (B30-219-595-BLNKWT); (1) 2.5 In B-509 White Magnetic Roll (B30C-2500-509-WT); (1) 4 In B-595 White Vinyl Label Roll (B30C4000-595-WT); (1) 4 In B-595 Yellow Vinyl Label Roll (B30C-4000-595-YL); (1) 4x6 In B-595 ANSI Caution Header Label Roll (B30-25-595-ANSICA); (1) Blank Valve Tag Variety Pack (142133); (1) Blue Print Ribbon (B30-R10000-BL):(1) Power Cord; (1) Brady Workstation Safety & Facility ID Suite Software (BWS-SFID-NA-EM); (1) BradyPrinter S3100-W Printer (S3100-W); (1) Cleaning Kit (PCK-6); (1) Cutter Cleaning Tool; (1) Documentation Holder; (1) Drivers CD; (1) Green Print Ribbon (B30-R10000-GN); (1) Network Card; (1) Quick Start Guide; (1) Red Print Ribbon (B30-R10000-RD); (1) Stylus; (1) USB Cable; (2) Black Print Ribbons (B30-R10000)
- Languages Available
- Bulgarian; Chinese (Simplified); Chinese (Traditional); Croatian; Czech; Danish; Dutch; English (US); Estonian; Finnish; French (France); German; Hungarian; Italian; Korean; Norwegian; Polish; Portuguese (Portugal); Romanian; Russian; Slovak; Slovenian; Spanish (Spain); Swedish; Turkish
- Media Sensor Adjustment
- Not Required
- Mode of Operation
- Stand-Alone & PC Connect
- Plug Type
- US
- Print Multiple Copies
- Yes
- Print Resolution
- 300 dpi
- Printer and Label Applications
- General Identification; Hazardous Materials; Lean / 5S; Pipe Marker; Safety
- Serialization Feature
- Yes
- Special Characters Quantity
- 95
- Symbols Categories
- Arrows; CLP/GHS; Fire Safety; First Aid & Rescue; Hazardous Transport; Mandatory; Miscellaneous; Packaging; Personal Protective Equipment; Prohibition; Safety Sign Headers; Shapes; Warning; WHMIS
- Time Date/Stamp
- Yes
- Units
- Inches; mm; Points
- Warranty
- 5 Years
- Continuous & Die-Cut Materials Supported
- Continuous Tapes & Die-Cut Labels
- Depth (in/ft/yd)
- 10.25 in
- Dimensions
- 9.5 in H x 12 in W x 10.25 in D
- Height (in/ft/yd)
- 9.5 in
- Maximum Label/Tape Width (in/ft/yd)
- 4.25 in
- Maximum Labels per Day
- 600 2x4 labels per day; 300 larger labels per day
- Maximum Print Width (in/ft/yd)
- 4 in
- Maximum Printed Label Length (mm/cm/m)
- 1.52 m
- Operating Humidity Range
- 20%-80% (RH non-condensing)
- Operating Temperature Range °F
- 50°F - 104°F
- Sign Size-General
- 9.5 in x 12 in
- Storage Temperature Range °F
- -4°F - 122°F
- Width (in/ft/yd)
- 12 in
ApplicationsCold temperature Labeling; Component and Equipment Labeling; Electrical Labeling; Exit and Egress Marking; Floor Marking; Hazard Communication Identification; Lean and 5S Labeling; Lockout Tagout; Pipe and Valve Marking; Safety Identification
Automatic Label Set UpYes
Barcode Symbologies - 2DMore Through Brady Workstation; PDF 417; QR Code
Brand NameBrady®
Calculated LanguageBulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (France), German, Hungarian, Italian, Korean, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Spain), Swedish, Turkish
Color Printing CapabilitySingle Color
Connectivity OptionsEthernet; USB; Wireless
Cut Options AvailableCut at the end of print jobs; Cut between labels
Desktop Printer ModelBradyPrinter S3100 Sign and Label Printer
Estimated Media Changeover Time20 s
Font StylesArial; Arial 65; Courier New; Tahoma; Times New Roman
Keyboard TypeFull Size QWERTY
Manual Calibration RequiredNo
Memory256 MB
Number of Symbols247
Primary Noun, Basic FunctionPrinter Kit
Print Preview FeatureYes
Print TechnologyThermal Transfer
Printer FeaturesSingle Color Printers
Software CompatibilityBrady® Workstation
Supply Remaining GaugeYes
Text Formatting OptionsBold; Expand/Condense Text Width; Font Sizes; Font Styles; Frame; Import Fonts; Import Graphics; Insert Time/Date; Italics; Justification; Mirror Print; Object Alignment; Reverse Print; Rotate Object; Serialization; Underlined; Variable or Fixed Label Length; Vertical Text
Trade NameS3100
User Interface TypeKeyboard; Touch Screen
Compatible Brady B-NumbersB-423; B-424; B-428; B-432; B-434; B-437; B-438; B-483; B-484; B-486; B-488; B-489; B-498; B-509; B-526; B-549; B-551; B-565; B-569; B-581; B-584; B-593; B-595; B-724; B-727; B-7569; B-787; B-854; B-855
Label Material TypesCold Temperature Tape; Indoor/Outdoor Grade Vinyl; Low-Halide Polyester; Magnetic Supply; Metallized Polyester Tape; Photoluminescent Tape; Polyimide; Polypropylene; Pre-Printed GHS/CLP Labels; Pre-Printed Header Material; Pre-Printed Sign Header Labels; Push Button and Raised Panel Labels; Reflective Tape; Repositionable Vinyl; Right-To-Know Chemical Labels; Tags; Tamper-Evident Metallized Polyester; TOUGHSTRIPE® Floor Marking Tape; TOUGHWASH® Washdown Resistant Labels; TOUGHWASH® Washdown Resistant Tape
Depth (mm/cm/m)26 cm
Dimensions (Metric)24.1 cm H x 26 cm D
Height (mm/cm/m)24.1 cm
Maximum Label/Tape Width (mm/cm/m)10.8 cm
Maximum Print Speed3 in/s
Maximum Printed Label Length (in/ft/yd)5 ft
Minimum Label Length (in/ft/yd)0.5 in
Operating Temperature Range °C10°C - 40°C
Power Supply Voltage110 to 240 V
Storage Humidity Range15%-90% (RH non-condensing)
Weight (oz/lb)20 lb
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- EU RoHS Compliance
- Pass Ex 2015/863
Contains CA PROP 65 SubstanceNo
EU RoHS CompliantYes
