Square D AL20DTF Heavy Duty Safety Switch Double Lug Kit 200A, 6 AWG to 300 kcmil
- MPN: AL20DTF
- UPC: 785901293705
- PPN: SCH-AL20DTF
CAD
$320.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

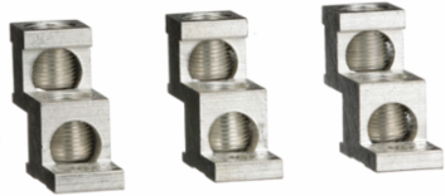

This is a double lug lit for Heavy Duty Savety Switches. This has a rated current of 200A. The lug wire range per phase is 6 AWG at 300 kcmil for both copper and aluminum. This lug kit has a range wire bending space of (2) 6 awg at 250 kcmil for both copper and aluminum. This lug kit contains 3 lugs. Order two kits fir line and load lugs. This lug kit is compatable with safewty switches. This accessory complies with UL Listed and CSA standards.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 0.88 in |
|---|
Complementary Attributes
| Line Rated Current | 200 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Carbon Footprint Of The Distribution Phase [A4] | 0.057645656678073, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0021779486285339, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 632 kg CO2 eq., 632.1564563109225 |
| Local Publishable Date | 2026-03-25 |
| Stocking Flag | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 2 x 6 AWG...2 x 300 kcmil 2 aluminium/copper |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | lug kit |
| Software Version | v6.1 |
| Tightening Torque | 275-275 lbf.in (2 x 6 AWG...2 x 250 kcmil) |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional-unit Unit | EACH |
| Energy Consumption On Product Lifetime In Kwh | 1156.32 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; United States, US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; United States, US |
| Height Nominal | 1.83 in |
| Halogen-free Status | Halogen free product |
| Package Weight(Lbs) | 226.796 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.5 kg CO2 eq., 0.4714398087452973 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 1 kg CO2 eq., 1.416590456526575 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Traceability | No |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1909 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Product Destination | safety switch |
| Returnability | Yes |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 634 kg CO2 eq. |
| Pep Verification Date | 2024-02-26 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | Mexico, MX |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; United States, US |
| Recyclability Potential In % | 64 |
| Width Nominal | 2.47 in |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536908585 |
