Weidmuller 1826880000 SAI-Y-5S- M12/M12
- MPN: 1826880000
- PPN: WDM-1826880000
CAD
$20.81
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

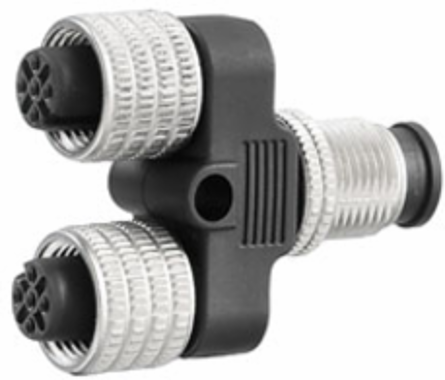

Y connector, M12 / M12
Documentation & Downloads
Specifications
General Data
| Coding | A |
|---|---|
| Housing main material | PBT |
| Pollution severity | 3 |
| Rated current | 4 A |
| Shield connection | No |
| Connection thread | M12 / M12 |
|---|---|
| Number of poles | 5 |
| Protection degree | IP67 |
| Rated voltage | 24 V |
| Temperature range of housing | -25…+90 °C |
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|

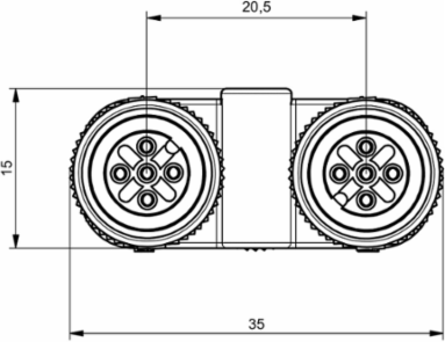

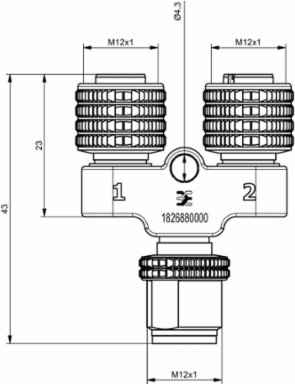

Dimensions And Weights
| Net weight | 22.9 g |
|---|

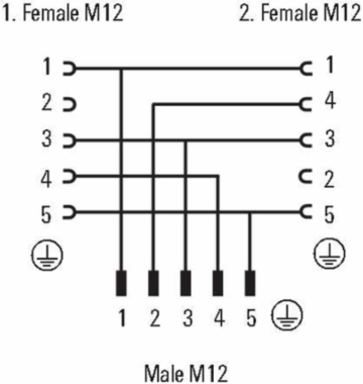

Connection Data
| Group outlet - plug-in connector | M12 pin |
|---|---|
| Single outlet 2 - plug-in connector | M12 socket |
| Single outlet 1 - plug-in connector | M12 socket |
|---|---|
| Tightening torque | M12: 0.8 - 1.2 Nm |
Classifications
| ETIM 6.0 | EC002925 |
|---|---|
| eClass 9.0 | 27-44-01-06 |
| eClass 10.0 | 27-44-01-06 |
| ETIM 7.0 | EC002925 |
|---|---|
| eClass 9.1 | 27-44-01-06 |
| UNSPSC | 30-21-18-10 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
