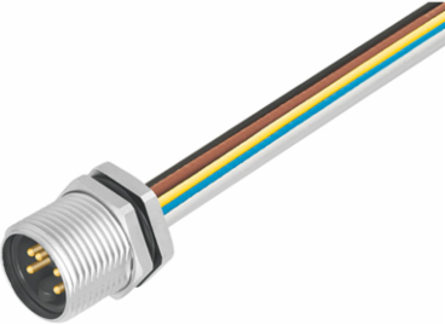

Weidmuller 1292490000 SAIE-7/8S-5-0.2U-H
- MPN: 1292490000
- PPN: WDM-1292490000
CAD
$22.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Built-in plugs, 7/8", 7/8", Number of poles: 5
Documentation & Downloads
Specifications
General Data
| Cable glands | 7/8" |
|---|---|
| Connection thread | 7/8" |
| Contact surface | Gold-plated |
| Housing main material | Zinc diecast, nickel-plated |

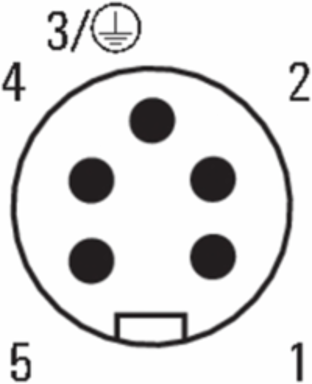

| Number of poles | 5 |
| Protection degree | IP67, when screwed in |
| Rated voltage | 300 V |
| Strand / cable length | 0.2 m |
| Type of connection | Pin |
| Coding | none |
|---|---|
| Contact material | CuZn |
| Core cross-section | 0.75 mm² |
| Material | PUR/ PUR |
| Plugging cycles | ≥ 100 |
| Rated current | 8 A (4- and 5-pole), 10 A (3-pole) |
| Rated voltage (text) | 300 V |
| Temperature range of housing | -25…+85 °C |
Approvals
| Approvals | cURus |
|---|---|
| UL File Number Search | E307231 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 60 g |
|---|
Standards
| Certificate No. (cURus) | E307231 |
|---|
Classifications
| ETIM 6.0 | EC002635 |
|---|---|
| eClass 9.0 | 27-44-01-02 |
| eClass 10.0 | 27-44-01-02 |
| ETIM 7.0 | EC002635 |
|---|---|
| eClass 9.1 | 27-44-01-03 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
