Weidmuller 1963550000 SAIE-M12B-5-1.0U-FP-M16
- MPN: 1963550000
- PPN: WDM-1963550000
CAD
$17.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

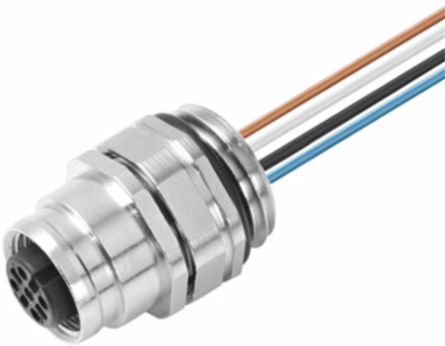

Built-in plugs, M12, Female socket, straight, M 16, Number of poles: 5, 1 m, Front mounting
Documentation & Downloads
Specifications
General Data
| Cable glands | M 16 |
|---|---|
| Coding | A |
| Contact surface | Gold-plated |
| Housing main material | Zinc diecast |
| Number of poles | 5 |
| Protection degree | IP67, when screwed in |
| Rated voltage | 60 V |
| Strand / cable length | 1 m |
| Cable length | 1 m |
|---|---|
| Connection thread | M12 |
| Core cross-section | 0.34 mm² |
| Material | PVC |
| Plugging cycles | ≥ 100 |
| Rated current | 4 A (4- and 5-pole)/ 2 A (8-pole)/ 1.5 A (12-pole) |
| Rated voltage (text) | 250 V (4-pole)/ 60 V (5-pole)/ 30 V (8 and 12-pole) |
Approvals
| Approvals | CULUS |
|---|---|
| UL File Number Search | E307231 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 38 g |
|---|
Standards
| Connector standard | IEC 61076-2-101 |
|---|---|
| Certificate no. (cULus) | E307231 |
| Certificate No. (cURus) | E307231 |
|---|
Classifications
| ETIM 6.0 | EC002635 |
|---|---|
| eClass 9.0 | 27-44-01-02 |
| eClass 10.0 | 27-44-01-02 |
| ETIM 7.0 | EC002635 |
|---|---|
| eClass 9.1 | 27-44-01-03 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature range, max. | 90 °C |
|---|---|
| Operating temperature, max. | 90 °C |
| Operating temperature range, min. | -30 °C |
|---|---|
| Operating temperature, min. | -30 °C |
