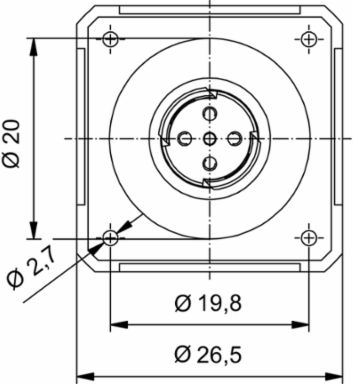

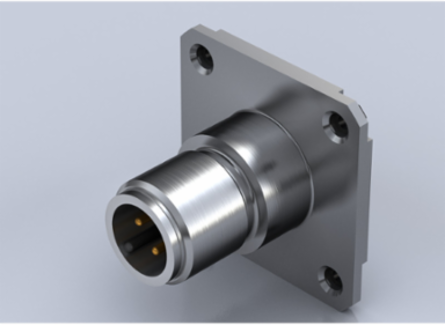

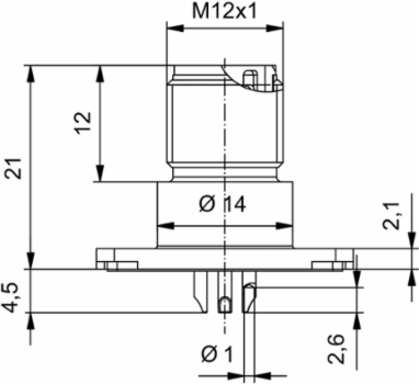

Weidmuller 2424340000 SAIE-M12S-4A-FV-26-LK
- MPN: 2424340000
- PPN: WDM-2424340000
CAD
$27.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Built-in plugs, M12, M 12, Number of poles: 4, Front mounting
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Net weight
- 20 g
Technical Data Of Pcb Plug-In Connector
- Coding
- A
- Housings
- M12 pin
- Shield connection
- No
- Rated voltage
- 250 V
- Rated current
- 4 A
- Protection degree
- IP67
- Housing main material
- CuZn, nickel-plated
- Tightening torque
- M12: 0.8 Nm
- Pollution severity
- 3 (2 within the sealed area)
- Contact material
- CuZn
- Material of the flange-mounted housing
- Nickel-plated CuZn
Housing surfacenickel-plated

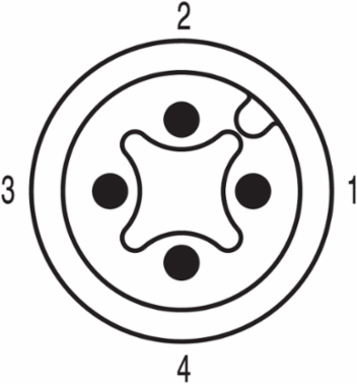

Number of poles4
Type of mountingFront mounting
Rated voltage (text)250 V (4-pole) / 60 V (5-pole)
Temperature range-30…80 °C
Contact surfaceAu (Gold)
Connection threadM12
Insulation strength100 MΩ
Plugging cycles≥ 100
Lock nut materialNickel-plated CuZn
Material Data
- Contact material
- CuZn
Contact surfaceAu (Gold)
Classifications
- ETIM 6.0
- EC002635
- eClass 9.0
- 27-44-01-02
- eClass 10.0
- 27-44-01-02
ETIM 7.0EC002635
eClass 9.127-44-01-03
System Parameters
- Insulation strength
- 100 MΩ
- Pin series quantity
- 1
- Protection degree
- IP67
Number of poles4
Plugging cycles≥ 100
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
