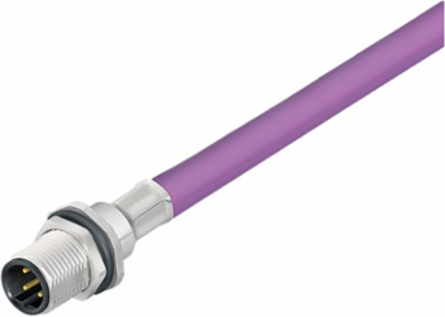

Weidmuller 2484420200 SAIE-M12S-CD-2.0A HW
- MPN: 2484420200
- PPN: WDM-2484420200
CAD
$43.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Built-in plugs, M12, PG 9, Number of poles: 5, 2 m
Documentation & Downloads
Specifications
General Data
| Bending radius, min., moving | 10 x cable diameter |
|---|---|
| Cable diameter, max. | 7.5 mm |
| Cable glands | PG 9 |
| Coding | A |
| Number of poles | 5 |
| Pollution severity | 3 |
| Rated current | 4 A |
| Sheathing colour | violet |
| Strand / cable length | 2 m |
| Bending radius, min., stationary | 5 x cable diameter |
|---|---|
| Cable diameter, min. | 6.9 mm |
| Cable length | 2 m |
| Connection thread | M12 |
| Plugging cycles | ≥ 100 (M12) |
| Protection degree | IP68 |
| Rated voltage | 125 V |
| Shield connection | Yes |
| Temperature range of housing | -5 … +70 °C |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 120 g |
|---|
Classifications
| ETIM 6.0 | EC002638 |
|---|---|
| eClass 9.0 | 27-44-03-09 |
| eClass 10.0 | 27-44-03-09 |
| ETIM 7.0 | EC002638 |
|---|---|
| eClass 9.1 | 27-44-03-09 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
