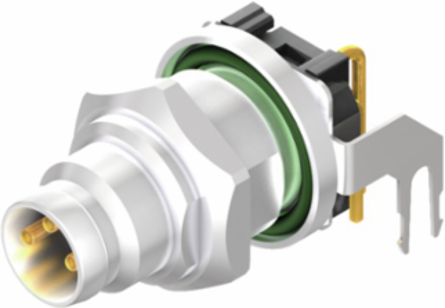

Weidmuller 2424300000 SAIEW-M8S-3S-H8TL
- MPN: 2424300000
- PPN: WDM-2424300000
CAD
$12.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Built-in plugs, M8, Number of poles: 3, Rear panel mounting
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform

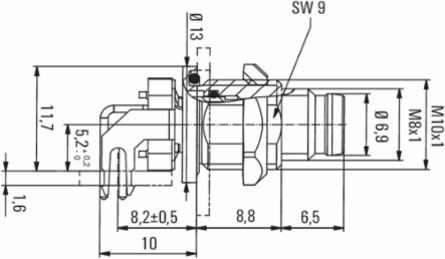

Dimensions And Weights
- Net weight
- 12.1 g

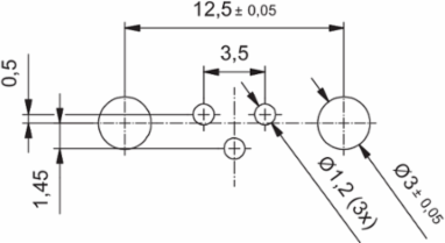

Technical Data Of Pcb Plug-In Connector
- Coding
- M8 = none
- Mounting height
- 8 mm

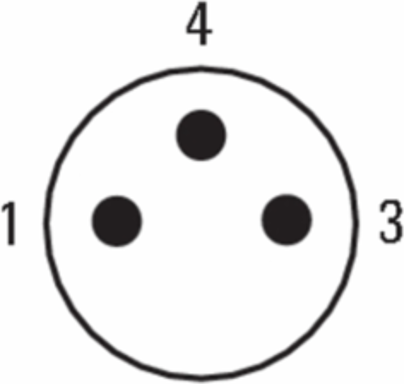

- Number of poles
- 3
- Type of mounting
- Rear panel mounting
- Rated voltage (text)
- 60 V (3-pole) / 30 V (4-pole)
- Temperature range
- -30…80 °C
- Contact surface
- Au (Gold)
- Connection thread
- M8
- Mounting torque range
- 0.8 Nm
- Pollution severity
- 3 (2 within the sealed area)
- Contact material
- CuZn
- Lock nut material
- Nickel-plated CuZn
- Grouting material
- PUR
HousingsM8 pin
Mounting threadM8
Shield connectionYes
Rated voltage60 V
Rated current4 A
Protection degreeIP67
Housing main materialCuZn, nickel-plated
Tightening torqueM8: 0.5 Nm
Insulation strength100 MΩ
Plugging cycles≥ 100
Seal materialNBR
Material of the flange-mounted housingNickel-plated CuZn
Material Data
- Contact material
- CuZn
Contact surfaceAu (Gold)
Classifications
- ETIM 6.0
- EC002638
- eClass 9.0
- 27-44-03-09
- eClass 10.0
- 27-44-03-09
ETIM 7.0EC002638
eClass 9.127-44-03-09
System Parameters
- Insulation strength
- 100 MΩ
- Pin series quantity
- 1
- Protection degree
- IP67
Number of poles3
Plugging cycles≥ 100
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
