Weidmuller 1902170000 SAIH-4x0,25(PVC)
- MPN: 1902170000
- PPN: WDM-1902170000
CAD
$4.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

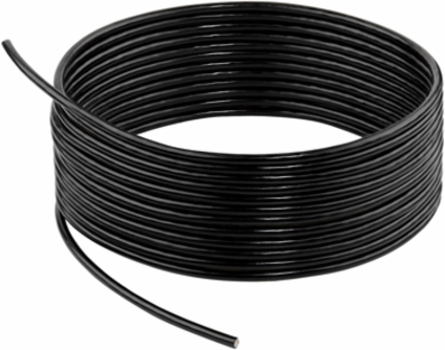

Sensor/actuator line, Number of poles : 4, Shielded: No, Sheath material: PVC, Halogen: Yes
Documentation & Downloads
Specifications
Technical Specifications For Cable
- Number of poles
- 4
- Outside diameter
- 4.8 ± 0.2 mm
- Insulation
- PVC
- Sheath material
- PVC
- Halogen
- Yes
- Temperature range, stationary
- -30...80 °C
- Suitable for cable carriers
- No
- Resistant to welding beads
- No
Core cross-section0.25 mm²
ShieldedNo
Colour codingbrown, white, blue, black
Sheathing colourblack
Temperature range, moving-5...80 °C
Outer cladding in accordance with UL AWM style2464 (80 °C / 300 V)
Torsion resistance0 °/m
Configurable cable lengthNo
Approvals
- Approvals
- EAC
ROHSConform
Classifications
- ETIM 6.0
- EC000830
- eClass 9.0
- 27-06-18-05
- eClass 10.0
- 27-06-18-01
ETIM 7.0EC003249
eClass 9.127-06-90-90
UNSPSC26-12-16-13
Dimensions And Weights
- Net weight
- 25 g
