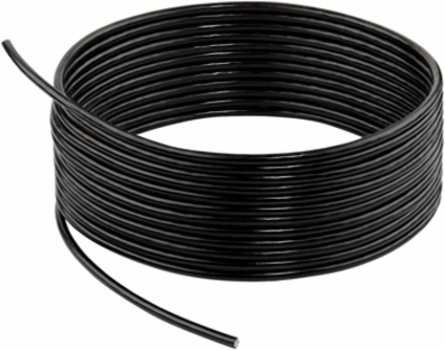

Weidmuller 1022960000 SAIH-5x0,34(PUR)
- MPN: 1022960000
- PPN: WDM-1022960000
CAD
$5.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Sensor/actuator line, Number of poles : 5, Shielded: No, Sheath material: PUR, Halogen: No
Documentation & Downloads
Specifications
Classifications
- ETIM 6.0
- EC000830
- eClass 9.0
- 27-06-18-05
- eClass 10.0
- 27-06-18-01
ETIM 7.0EC003249
eClass 9.127-06-90-90
UNSPSC30-21-18-01
Technical Specifications For Cable
- Number of poles
- 5
- Outside diameter
- 5 ± 0.2 mm
- Insulation
- PP
- Sheath material
- PUR
- Halogen
- No
- Temperature range, stationary
- -40...80 °C
- Outer cladding in accordance with UL AWM style
- 20233 (80 °C / 300 V)
- Torsion resistance
- 360 °/m
- Bending radius, min., moving
- 10 x cable diameter
- Speed
- 5 m/s
- Resistant to welding beads
- No
- Hydrolysis and microbe resistant
- Yes
- Resistance to oils
- in accordance with IEC 60811:404
Core cross-section0.34 mm²
ShieldedNo
Colour codingbrown, white, blue, black, grey
Sheathing colourblack
Temperature range, moving-25...80 °C
Core in accordance with UL AWM style10493 (80 °C / 300 V)
Suitable for cable carriersYes
Bending radius, min., stationary5 x cable diameter
Acceleration5 m/s²
Bending cycles2 Mio
Configurable cable lengthNo
LABS-freeYes
Resistance to spread of flameIn accordance with UL1581 UL/ CUL FT1, in accordance with IEC 60332-1-2, in accordance with IEC 60332-1-3, in accordance with IEC 60332-2-2
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Net weight
- 35.8 g
