Weidmuller 1424271000 SAIL-M12BG-12S10U

MPN: 1424271000
PPN: WDM-1424271000

$79.58

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

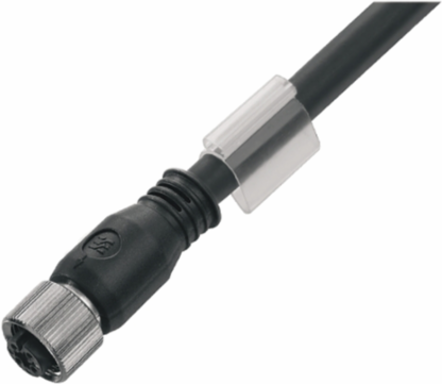

Sensor/actuator line, One end without connector, M12, Number of poles : 12, 10 m, Female socket, straight, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No

Documentation & Downloads

Specifications

Approvals

Approvals	CULUS
UL File Number Search	E307231

ROHS	Conform

Dimensions And Weights

Net weight	494 g

Standards

Connector standard	IEC 61076-2-101

Certificate no. (cULus)	E307231

General Technical Data

Version	Female socket, straight
Housing main material	TPU
Coding	A
Contact surface	Gold-plated
Rated voltage	30 V
Insulation strength	108 Ω
Tightening torque	M12: 0.8 - 1.2 Nm
Pollution severity	3

Connection thread	M12
Threaded ring material	Diecast zinc
Protection degree	IP67, when screwed in
LED	No
Rated current	1.5 A
Temperature range of housing	-25…+80 °C
Plugging cycles	≥ 100
jumpered	No

Technical Specifications For Cable

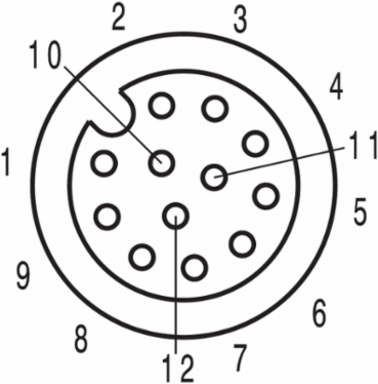

Number of poles	12
Cable length	10 m
Insulation	PP
Sheath material	PUR
Halogen	No
Temperature range, stationary	-40...90 °C
Outer cladding in accordance with UL AWM style	20549 (80 °C / 300 V)
Torsion resistance	0 °/m
Bending radius, min., moving	12 x cable diameter
Speed	100 m/min
Configurable cable length	No

Core cross-section	0.14 mm²
Shielded	Yes
Colour coding	black, yellow, pink, grey / pink, green, white, blue, violet, brown, red, grey, red / blue
Sheathing colour	black
Temperature range, moving	-30...90 °C
Core in accordance with UL AWM style	10493 (80 °C / 300 V)
Suitable for cable carriers	Yes
Bending radius, min., stationary	5 x cable diameter
Acceleration	5 m/s²
Bending cycles	1 mill.
