Weidmuller 1968591000 SAIL-M12BG-3-10T
- MPN: 1968591000
- PPN: WDM-1968591000
CAD
$30.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

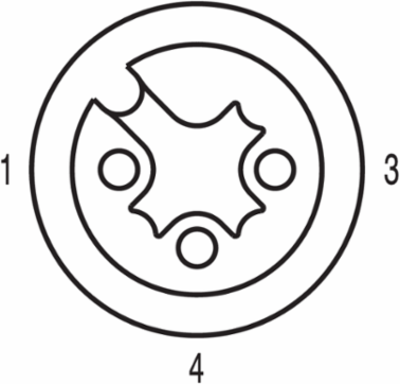

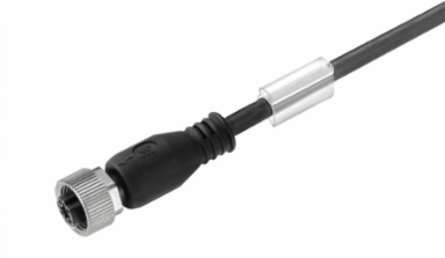

Sensor/actuator line, One end without connector, M12, Number of poles : 3, 10 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Documentation & Downloads
Specifications
Approvals
| Approvals | CULUS |
|---|---|
| UL File Number Search | E307231 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 325 g |
|---|
Standards
| Connector standard | IEC 61076-2-101 |
|---|
| Certificate no. (cULus) | E307231 |
|---|
General Technical Data
| AF size | 12 mm |
|---|---|
| Connection thread | M12 |
| Threaded ring material | Diecast zinc |
| Protection degree | IP65, IP66, IP67, IP68, when screwed in |
| LED | No |
| Rated current | 4 A |
| Temperature range of housing | -25…+80 °C |
| Plugging cycles | ≥ 100 |
| jumpered | No |
| Version | Female socket, straight |
|---|---|
| Housing main material | PUR |
| Coding | A |
| Contact surface | Gold-plated |
| Rated voltage | 250 V |
| Insulation strength | 108 Ω |
| Tightening torque | M12: 0.8 - 1.2 Nm |
| Pollution severity | 3 |
Technical Specifications For Cable
| Number of poles | 3 |
|---|---|
| Outside diameter | 4.9 ± 0.2 mm |
| Shielded | No |
| Colour coding | brown, blue, black |
| Sheathing colour | black |
| Temperature range, moving | -30...105 °C |
| Outer cladding in accordance with UL AWM style | 20233 (80 °C / 300 V) |
| Torsion resistance | 360 °/m |
| Bending radius, min., moving | 7.5 x cable diameter |
| Speed | 200 m/min |
| Resistant to welding beads | Yes |
| Core cross-section | 0.34 mm² |
|---|---|
| Cable length | 10 m |
| Insulation | PP |
| Sheath material | PUR |
| Halogen | No |
| Temperature range, stationary | -40...105 °C |
| Suitable for cable carriers | Yes |
| Bending radius, min., stationary | 4 x cable diameter |
| Acceleration | 5 m/s² |
| Bending cycles | 10 Mio |
| Configurable cable length | No |
Classifications
| ETIM 6.0 | EC001855 |
|---|---|
| eClass 9.0 | 27-06-03-11 |
| eClass 10.0 | 27-06-03-11 |
| ETIM 7.0 | EC001855 |
|---|---|
| eClass 9.1 | 27-06-03-11 |
| UNSPSC | 30-21-18-01 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 80 °C |
|---|
| Operating temperature, min. | -25 °C |
|---|
