Weidmuller 1812541700 SAIL-M12BG-4S17U
- MPN: 1812541700
- PPN: WDM-1812541700
CAD
$76.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

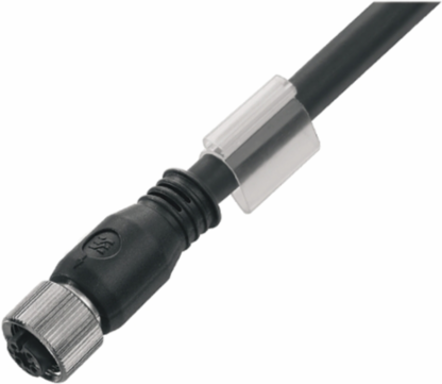

Sensor/actuator line, One end without connector, M12, Number of poles : 4, 17 m, Female socket, straight, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No
Documentation & Downloads
Specifications
Approvals
- Approvals
- CULUS
- UL File Number Search
- E307231
ROHSConform
Dimensions And Weights
- Net weight
- 745 g
Standards
- Connector standard
- IEC 61076-2-101
Certificate no. (cULus)E307231
General Technical Data
- Version
- Female socket, straight
- Housing main material
- PUR
- Coding
- A
- Contact surface
- Gold-plated
- Rated voltage
- 250 V
- Insulation strength
- 108 Ω
- Tightening torque
- M12: 0.8 - 1.2 Nm
- Pollution severity
- 3
Connection threadM12
Threaded ring materialDiecast zinc
Protection degreeIP65, IP66, IP67, IP68, when screwed in
LEDNo
Rated current4 A
Temperature range of housing-25…+80 °C
Plugging cycles≥ 100
jumperedNo
Technical Specifications For Cable
- Number of poles
- 4
- Outside diameter
- 5.4 ± 0.2 mm
- Shielded
- Yes

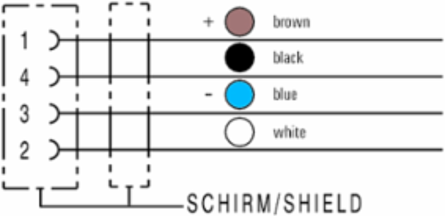

- Colour coding
- black, brown, white, blue
- Sheathing colour
- black
- Temperature range, moving
- -25...80 °C
- Core in accordance with UL AWM style
- 10493 (80 °C / 300 V)
- Suitable for cable carriers
- Yes
- Bending radius, min., stationary
- 5 x cable diameter
- Acceleration
- 5 m/s²
- Bending cycles
- 2 Mio
- Configurable cable length
- No
- LABS-free
- Yes
- Resistance to spread of flame
- According to UL2556 FT2
Core cross-section0.34 mm²
Cable length17 m
InsulationPP
Sheath materialPUR
HalogenNo
Temperature range, stationary-40...80 °C
Outer cladding in accordance with UL AWM style20233 (80 °C / 300 V)
Torsion resistance0 °/m
Bending radius, min., moving10 x cable diameter
Speed200 m/min
Resistant to welding beadsNo
Hydrolysis and microbe resistantYes
Resistance to oilsin accordance with IEC 60811:404
Classifications
- ETIM 6.0
- EC001855
- eClass 9.0
- 27-06-03-11
- eClass 10.0
- 27-06-03-11
ETIM 7.0EC001855
eClass 9.127-06-03-11
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature range, max.
- 80 °C
- Operating temperature, max.
- 80 °C
Operating temperature range, min.-25 °C
Operating temperature, min.-25 °C
