Weidmuller 1906951000 SAIL-M12BW-3S10U
- MPN: 1906951000
- PPN: WDM-1906951000
CAD
$48.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

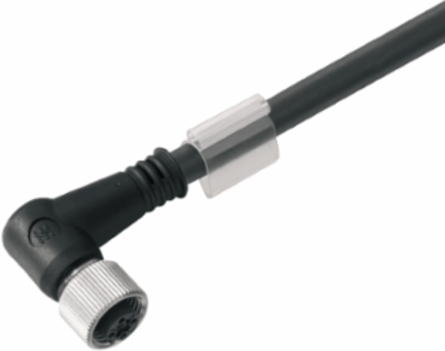

Sensor/actuator line, One end without connector, M12, Number of poles : 3, 10 m, Socket, angled, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No
Documentation & Downloads
Specifications
Approvals
| Approvals | CULUS |
|---|---|
| UL File Number Search | E307231 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 348 g |
|---|
Standards
| Connector standard | IEC 61076-2-101 |
|---|
| Certificate no. (cULus) | E307231 |
|---|
General Technical Data

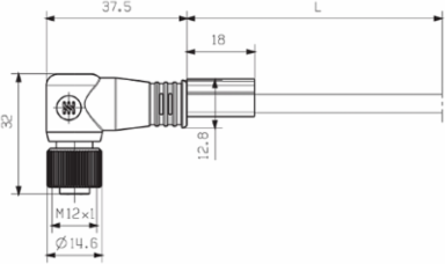

| Version | Socket, angled |
|---|---|
| Housing main material | PUR |

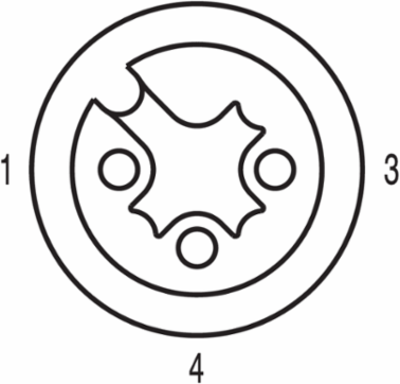

| Coding | A |
| Contact surface | Gold-plated |
| Rated voltage | 250 V |
| Insulation strength | 108 Ω |
| Tightening torque | M12: 0.8 - 1.2 Nm |
| Pollution severity | 3 |
| Connection thread | M12 |
|---|---|
| Threaded ring material | Diecast zinc |
| Protection degree | IP65, IP66, IP67, IP68, when screwed in |
| LED | No |
| Rated current | 4 A |
| Temperature range of housing | -25…+80 °C |
| Plugging cycles | ≥ 100 |
| jumpered | No |
Technical Specifications For Cable
| Number of poles | 3 |
|---|---|
| Outside diameter | 5 ± 0.2 mm |
| Shielded | Yes |

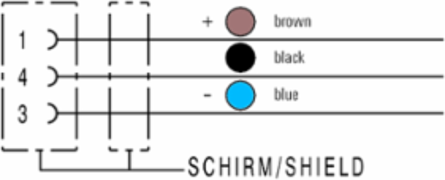

| Colour coding | brown, blue, black |
| Sheathing colour | black |
| Temperature range, moving | -25...80 °C |
| Core in accordance with UL AWM style | 10493 (80 °C / 300 V) |
| Suitable for cable carriers | Yes |
| Bending radius, min., stationary | 5 x cable diameter |
| Acceleration | 5 m/s² |
| Bending cycles | 2 Mio |
| Configurable cable length | No |
| LABS-free | Yes |
| Resistance to spread of flame | According to UL2556 FT2 |
| Core cross-section | 0.34 mm² |
|---|---|
| Cable length | 10 m |
| Insulation | PP |
| Sheath material | PUR |
| Halogen | No |
| Temperature range, stationary | -40...80 °C |
| Outer cladding in accordance with UL AWM style | 20233 (80 °C / 300 V) |
| Torsion resistance | 0 °/m |
| Bending radius, min., moving | 10 x cable diameter |
| Speed | 200 m/min |
| Resistant to welding beads | No |
| Hydrolysis and microbe resistant | Yes |
| Resistance to oils | in accordance with IEC 60811:404 |
Classifications
| ETIM 6.0 | EC001855 |
|---|---|
| eClass 9.0 | 27-06-03-11 |
| eClass 10.0 | 27-06-03-11 |
| ETIM 7.0 | EC001855 |
|---|---|
| eClass 9.1 | 27-06-03-11 |
| UNSPSC | 26-12-16-13 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature range, max. | 80 °C |
|---|---|
| Operating temperature, max. | 80 °C |
| Operating temperature range, min. | -25 °C |
|---|---|
| Operating temperature, min. | -25 °C |
