Weidmuller 2455201000 SAIL-M12BW-L-10PGR
- MPN: 2455201000
- PPN: WDM-2455201000
CAD
$113.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

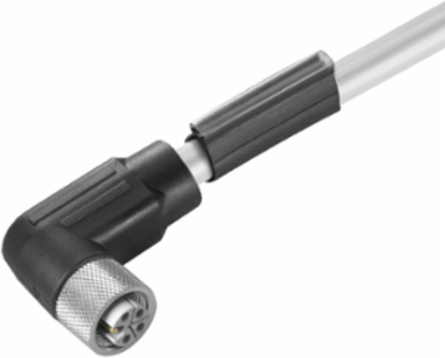

Sensor/actuator line, One end without connector, M12, Number of poles : 5, 10 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Documentation & Downloads
Specifications
Approvals
| Approvals | CULUS |
|---|---|
| UL File Number Search | E257571 |
| ROHS | Conform |
|---|

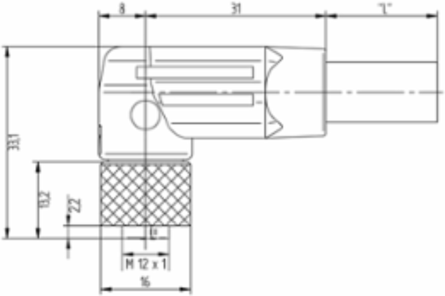

Dimensions And Weights
| Net weight | 500 g |
|---|
Standards
| Connector standard | IEC 61076-2-111 |
|---|
| Certificate no. (cULus) | E257571 |
|---|
General Technical Data
| Version | Socket, angled |
|---|---|
| Housing main material | PUR |
| Protection degree | IP65, IP67, when screwed in |
| LED | No |
| Rated current | 16 A |
| Temperature range of housing | -25…+80 °C |
| Pollution severity | 3 |
| Connection thread | M12 |
|---|---|

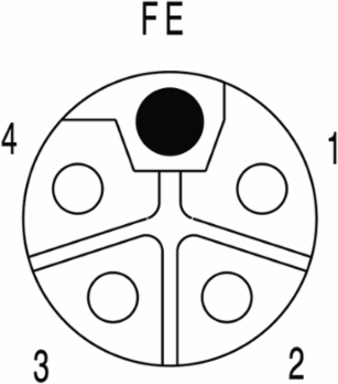

| Coding | L |
| Contact surface | Gold-plated |
| Rated voltage | 50 V |
| Insulation strength | 108 Ω |
| Plugging cycles | ≤ 100 |
| jumpered | No |
Technical Specifications For Cable
| Number of poles | 5 |
|---|---|
| Outside diameter | 8 ± 0.2 mm |
| Shielded | No |

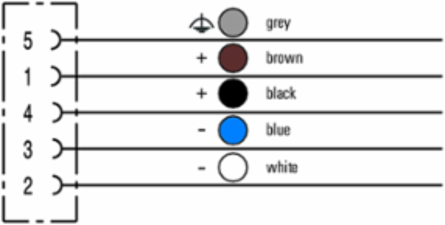

| Colour coding | brown, white, blue, black, grey |
| Sheathing colour | grey |
| Temperature range, moving | -30...80 °C |
| Outer cladding in accordance with UL AWM style | 20939 (80 °C / 600 V) |
| Bending radius, min., stationary | 4 x cable diameter |
| Acceleration | 5 m/s² |
| Bending cycles | 10 Mio |
| Configurable cable length | No |
| Core cross-section | 1.5 mm² |
|---|---|
| Cable length | 10 m |
| Insulation | PP |
| Sheath material | PUR |
| Halogen | No |
| Temperature range, stationary | -40...80 °C |
| Suitable for cable carriers | Yes |
| Bending radius, min., moving | 7.5 x cable diameter |
| Speed | 5 m/s |
| Resistant to welding beads | No |
Classifications
| ETIM 6.0 | EC001855 |
|---|---|
| eClass 9.0 | 27-06-03-11 |
| eClass 10.0 | 27-06-03-11 |
| ETIM 7.0 | EC001855 |
|---|---|
| eClass 9.1 | 27-06-03-11 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
