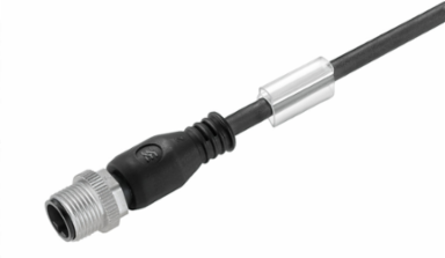

Weidmuller 1925441000 SAIL-M12G-4-10V
- MPN: 1925441000
- PPN: WDM-1925441000
CAD
$20.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Sensor/actuator line, One end without connector, M12, Number of poles : 4, 10 m, pin, straight, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes
Documentation & Downloads
Specifications
Approvals
- Approvals
- CULUS
- UL File Number Search
- E307231
ROHSConform
Dimensions And Weights
- Net weight
- 424 g
Standards
- Connector standard
- IEC 61076-2-101
Certificate no. (cULus)E307231
General Technical Data
- AF size
- 12 mm
- Connection thread
- M12
- Threaded ring material
- Diecast zinc
- Protection degree
- IP65, IP66, IP67, IP68, when screwed in
- LED
- No
- Rated current
- 4 A
- Temperature range of housing
- -25…+80 °C
- Plugging cycles
- ≥ 100
- jumpered
- No
Versionpin, straight
Housing main materialPUR
CodingA
Contact surfaceGold-plated
Rated voltage250 V
Insulation strength108 Ω
Tightening torqueM12: 0.8 - 1.2 Nm
Pollution severity3
Technical Specifications For Cable

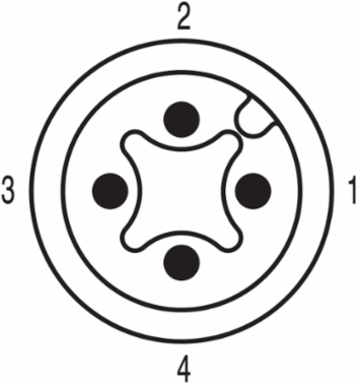

- Number of poles
- 4
- Outside diameter
- 5.3 ± 0.2 mm
- Shielded
- No
- Colour coding
- brown, white, blue, black
- Sheathing colour
- black
- Temperature range, moving
- -5...80 °C
- Outer cladding in accordance with UL AWM style
- 2464 (80 °C / 300 V)
- Torsion resistance
- 0 °/m
- Configurable cable length
- No
Core cross-section0.34 mm²
Cable length10 m
InsulationPVC
Sheath materialPVC
HalogenYes
Temperature range, stationary-30...80 °C
Suitable for cable carriersNo
Resistant to welding beadsNo
Classifications
- ETIM 6.0
- EC001855
- eClass 9.0
- 27-06-03-11
- eClass 10.0
- 27-06-03-11
ETIM 7.0EC001855
eClass 9.127-06-03-11
UNSPSC26-12-16-13
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature range, max.
- 80 °C
- Operating temperature, max.
- 80 °C
Operating temperature range, min.-5 °C
Operating temperature, min.-25 °C
