Weidmuller 9456102500 SAIL-M12G-4-25U
- MPN: 9456102500
- PPN: WDM-9456102500
CAD
$44.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

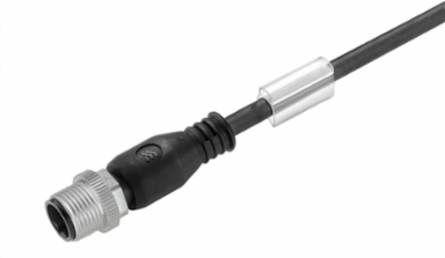

Sensor/actuator line, One end without connector, M12, Number of poles : 4, 25 m, pin, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Documentation & Downloads
Specifications
Approvals
- Approvals
- CULUS
- UL File Number Search
- E307231
ROHSConform
Dimensions And Weights
- Net weight
- 764 g
Standards
- Connector standard
- IEC 61076-2-101
Certificate no. (cULus)E307231
General Technical Data
- AF size
- 12 mm
- Connection thread
- M12
- Threaded ring material
- Diecast zinc
- Contact surface
- Gold-plated
- Rated voltage
- 250 V
- Insulation strength
- 108 Ω
- Plugging cycles
- ≥ 100
- jumpered
- No
Versionpin, straight
Housing main materialPUR
Protection degreeIP65, IP66, IP67, IP68, when screwed in
LEDNo
Rated current4 A
Temperature range of housing-25…+80 °C
Pollution severity3
Technical Specifications For Cable

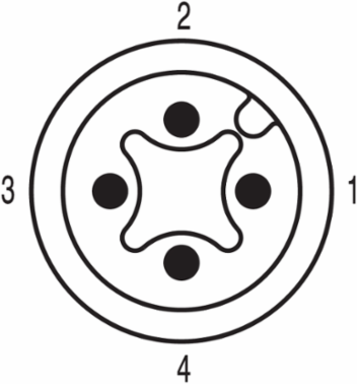

- Number of poles
- 4
- Outside diameter
- 4.7 ± 0.2 mm
- Shielded
- No
- Colour coding
- brown, white, blue, black
- Sheathing colour
- black
- Temperature range, moving
- -25...80 °C
- Core in accordance with UL AWM style
- 10493 (80 °C / 300 V)
- Suitable for cable carriers
- Yes
- Bending radius, min., stationary
- 5 x cable diameter
- Acceleration
- 5 m/s²
- Bending cycles
- 2 Mio
- Configurable cable length
- No
- LABS-free
- Yes
- Resistance to spread of flame
- in accordance with IEC 60332-1-2, in accordance with IEC 60332-1-3, in accordance with IEC 60332-2-2, In accordance with UL1581 UL/ CUL FT1
Core cross-section0.34 mm²
Cable length25 m
InsulationPP
Sheath materialPUR
HalogenNo
Temperature range, stationary-40...80 °C
Outer cladding in accordance with UL AWM style20233 (80 °C / 300 V)
Torsion resistance360 °/m
Bending radius, min., moving10 x cable diameter
Speed5 m/s
Resistant to welding beadsNo
Hydrolysis and microbe resistantYes
Resistance to oilsin accordance with IEC 60811:404
Classifications
- ETIM 6.0
- EC001855
- eClass 9.0
- 27-06-03-11
- eClass 10.0
- 27-06-03-11
ETIM 7.0EC001855
eClass 9.127-06-03-11
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
