Weidmuller 1060111000 SAIL-M12G-CD-10B
- MPN: 1060111000
- PPN: WDM-1060111000
CAD
$70.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

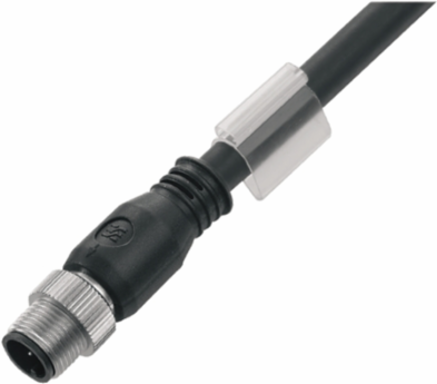

Bus line, One end without connector, M12, Number of poles: 5, 10 m, pin, straight, Shielded: Yes, LED: No, Sheath material: PVC, Halogen: Yes
Documentation & Downloads
Specifications
Approvals
| Approvals | CULUS |
|---|---|
| UL File Number Search | E307231 |
| ROHS | Conform |
|---|

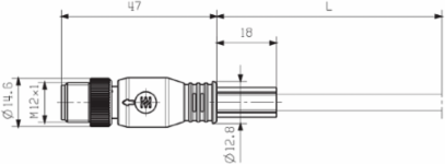

Dimensions And Weights
| Net weight | 674 g |
|---|
Standards
| Certificate no. (cULus) | E307231 |
|---|
General Technical Data
| Version | pin, straight |
|---|---|
| Housing main material | PUR |

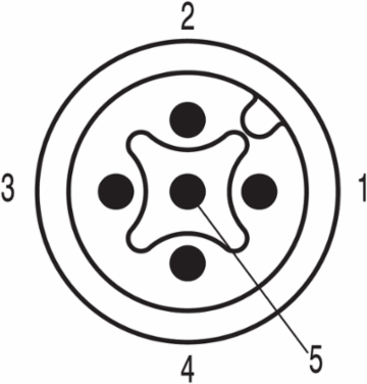

| Coding | A |
| Contact surface | Gold-plated |
| Rated voltage | 125 V |
| Insulation strength | 108 Ω |
| Tightening torque | M12: 0.8 - 1.2 Nm |
| Pollution severity | 3 |
| Connection thread | M12 |
|---|---|
| Threaded ring material | Brass, nickel-plated |
| Protection degree | IP67 |
| LED | No |
| Rated current | 4 A |
| Temperature range of housing | -25…+80 °C |
| Plugging cycles | ≥ 100 |
| jumpered | No |
Technical Specifications For Cable
| Number of poles | 5 |
|---|---|
| Outside diameter | 7 ± 0.3 mm |
| Shielded | Yes |
| Colour coding | white, blue, red, black |
| Sheathing colour | black |
| Temperature range, moving | -10...80 °C |
| Outer cladding in accordance with UL AWM style | 2571 (80 °C) |
| Bending radius, min., stationary | 5 x cable diameter |
| Acceleration | 5 m/s² |
| Bending cycles | 3 Mio |
| Hybrid cable | No |
| Configurable cable length | No |
| Wire cross section | 2 x 0.34 mm² + 2 x 0.22 mm² |
|---|---|
| Cable length | 10 m |
| Insulation | PVC |
| Sheath material | PVC |
| Halogen | Yes |
| Temperature range, stationary | -40...80 °C |
| Suitable for cable carriers | No |
| Bending radius, min., moving | 10 x cable diameter |
| Speed | 180 m/min |
| Resistant to welding beads | No |
| Irradiation crosslinked | No |
Classifications
| ETIM 6.0 | EC002599 |
|---|---|
| eClass 9.0 | 27-06-03-08 |
| eClass 10.0 | 27-06-03-08 |
| ETIM 7.0 | EC002599 |
|---|---|
| eClass 9.1 | 27-06-03-08 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
