Weidmuller 2050230500 SAIL-M12G-S-5.0P

MPN: 2050230500
PPN: WDM-2050230500

$61.82

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

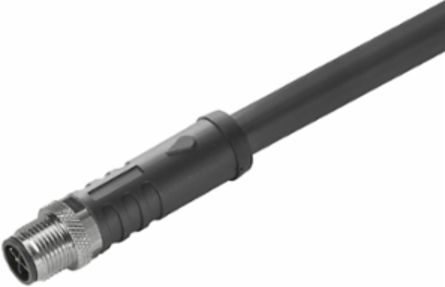

Power cable, One end without connector, M12, Number of poles : 4 (3 + PE), 5 m, pin, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Documentation & Downloads

Specifications

Approvals

ROHS	Conform

Dimensions And Weights

Net weight	300 g

Standards

Connector standard	IEC 61076-2-111

General Technical Data

Version	pin, straight
Housing main material	PUR
Protection degree	IP67, when screwed in
LED	No
Rated current	12 A
Temperature range of housing	-25…+80 °C
Pollution severity	3

Connection thread	M12
Coding	S
Contact surface	Gold-plated
Rated voltage	600 V
Insulation strength	108 Ω
Plugging cycles	≥ 100

Technical Specifications For Cable

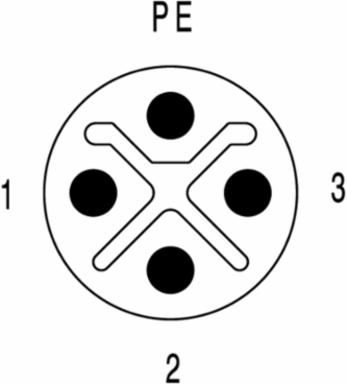

Number of poles	4 (3 + PE)
Outside diameter	9.6 ± 0.3 mm
Shielded	No

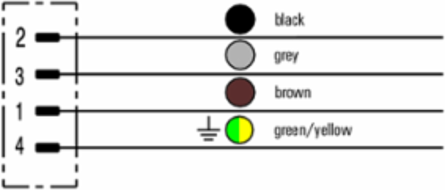

Colour coding	grey, black, brown, Green/yellow
Sheathing colour	black
Temperature range, moving	-40...80 °C
Outer cladding in accordance with UL AWM style	20234 (80 °C / 1000 V)
Bending radius, min., stationary	4 x cable diameter
Acceleration	5 m/s²
Bending cycles	10 Mio
Configurable cable length	No

Core cross-section	1.5 mm²
Cable length	5 m
Insulation	PP
Sheath material	PUR
Halogen	No
Temperature range, stationary	-50...80 °C
Suitable for cable carriers	Yes
Bending radius, min., moving	7.5 x cable diameter
Speed	5 m/s
Resistant to welding beads	No
