Weidmuller 2706681000 SAIL-M12G-S3-10P
- MPN: 2706681000
- PPN: WDM-2706681000
CAD
$82.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

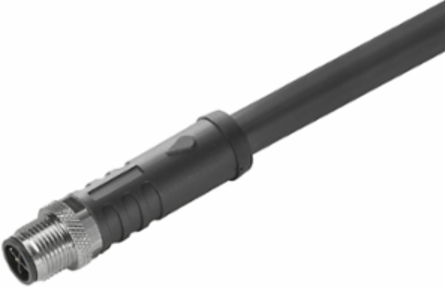

Power cable, One end without connector, M12, Number of poles : 3 (2 + PE), 10 m, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 945 g |
|---|
General Technical Data
| Connection thread | M12 |
|---|---|
| Coding | S |
| Contact surface | Gold-plated |
| Rated voltage | 600 V |
| Insulation strength | 108 Ω |
| Plugging cycles | ≥ 100 |
| Housing main material | PUR |
|---|---|
| Protection degree | IP67, when screwed in |
| LED | No |
| Rated current | 12 A |
| Temperature range of housing | -25…+80 °C |
| Pollution severity | 3 |
Technical Specifications For Cable

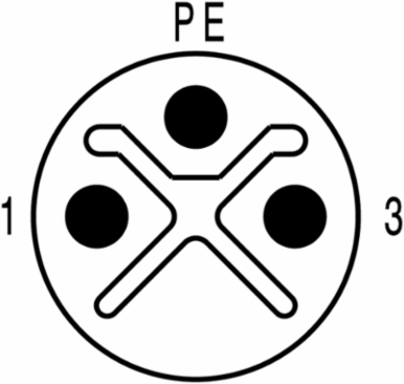

| Number of poles | 3 (2 + PE) |
|---|---|
| Outside diameter | 8.5 ± 0.3 mm |
| Shielded | No |
| Colour coding | blue, brown, Green/yellow |
| Sheathing colour | black |
| Temperature range, moving | -40...80 °C |
| Outer cladding in accordance with UL AWM style | 20234 (80 °C / 1000 V) |
| Bending radius, min., stationary | 4 x cable diameter |
| Acceleration | 5 m/s² |
| Bending cycles | 10 Mio |
| Configurable cable length | No |
| Core cross-section | 1.5 mm² |
|---|---|
| Cable length | 10 m |
| Insulation | PP |
| Sheath material | PUR |
| Halogen | No |
| Temperature range, stationary | -50...80 °C |
| Suitable for cable carriers | Yes |
| Bending radius, min., moving | 7.5 x cable diameter |
| Speed | 5 m/s |
| Resistant to welding beads | No |
Classifications
| ETIM 6.0 | EC001855 |
|---|---|
| eClass 9.0 | 27-06-03-11 |
| eClass 10.0 | 27-06-03-11 |
| ETIM 7.0 | EC001855 |
|---|---|
| eClass 9.1 | 27-06-03-11 |
