Weidmuller 1964711000 SAIL-M12GM12G-CD-10A

MPN: 1964711000
PPN: WDM-1964711000

$104.99

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

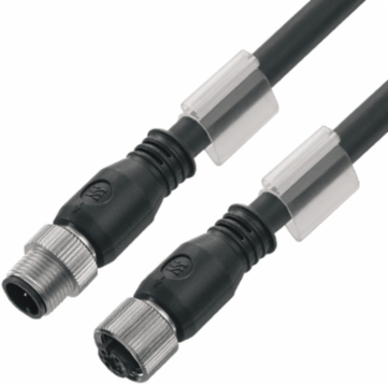

Bus line, Connecting line, M12 / M12, Number of poles: 5, 10 m, pin, straight - socket, straight, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No

Documentation & Downloads

Specifications

Approvals

Approvals	CULUS
UL File Number Search	E307231

ROHS	Conform

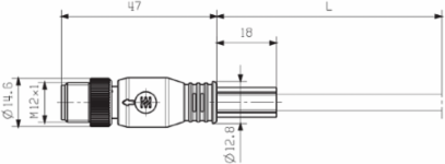

Dimensions And Weights

Net weight	637 g

Standards

Certificate no. (cULus)	E307231

General Technical Data

Version	pin, straight - socket, straight
Housing main material	PUR
Coding	A
Contact surface	Gold-plated
Rated voltage	125 V
Insulation strength	108 Ω
Tightening torque	M12: 0.8 - 1.2 Nm
Pollution severity	3

Connection thread	M12 / M12
Threaded ring material	Brass, nickel-plated
Protection degree	IP67
LED	No
Rated current	4 A
Temperature range of housing	-25…+80 °C
Plugging cycles	≥ 100
jumpered	No

Technical Specifications For Cable

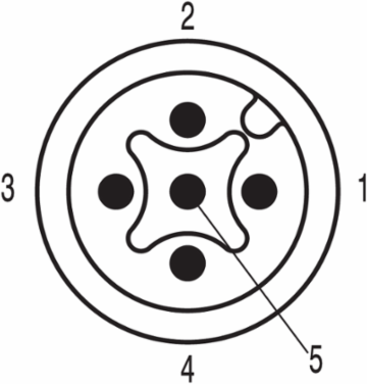

Number of poles	5
Outside diameter	7 ± 0.3 mm
Shielded	Yes

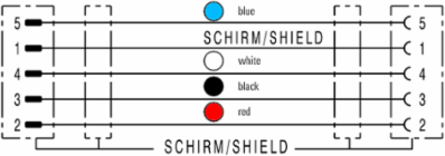

Colour coding	white, blue, red, black
Sheathing colour	black
Temperature range, moving	-10...80 °C
Outer cladding in accordance with UL AWM style	20236 (80 °C / 30 V)
Bending radius, min., stationary	5 x cable diameter
Acceleration	5 m/s²
Bending cycles	3 Mio
Hybrid cable	No
Configurable cable length	No

Wire cross section	2 x 0.34 mm² + 2 x 0.22 mm²
Cable length	10 m
Insulation	TPE
Sheath material	PUR
Halogen	No
Temperature range, stationary	-40...80 °C
Suitable for cable carriers	Yes
Bending radius, min., moving	10 x cable diameter
Speed	180 m/min
Resistant to welding beads	No
Irradiation crosslinked	No
